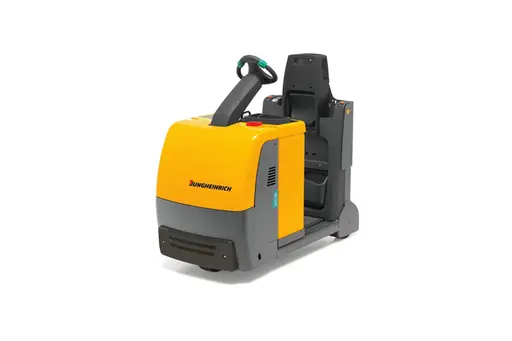

Our flexible and economical tow tractor EZS C40 is the perfect solution for combined indoor and outdoor use. The superelastic tires always ensure optimum traction, whether smooth floor or uneven grounds.

The versatile vehicle also impresses when working with special trailers or pulling tow trains with special taxi trailers.

The easily visible and accessible coupling ensures efficient and relaxed work. An economic 24-V 3-phase motor provides total power with strong acceleration and high-end speeds.

High flexibility is guaranteed by the universal coupling construction suitable for different trailers. Easy entry and exit thanks to a low stand-on platform relieve the driver.

Moreover, comfort and safety are ensured by the short distance between the driver's seat and the load, a supportive backrest, the multifunction steering wheel jetPILOT, and various driving safety systems.

✔ Super-elastic drive wheel (SE) and increased ground clearance.

✔ Powerful, maintenance-free 3-phase AC drive motor.

✔ Safe cornering thanks to curveCONTROL.

✔ Impulse control.

✔ Semi-automatic remote coupling release (optional).

Li-Ion

	No worries. No compromise. With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.
	100 % satisfaction. Guaranteed. We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Features

Innovative 3-phase AC technology

More power and performance while simultaneously reducing operating costs due to maintenance-free 3-phase AC technology.
High-efficiency levels with excellent energy management.
Powerful acceleration.
Rapid direction change.
Maintenance-free drive motor without carbon brushes.
2-year warranty on driving motor.

Long operating times with lead-acid battery

Energy-efficient 3-phase AC technology and high battery capacities allow for long operating times.
Standard version: 3 PzS 465 Ah.
Optional battery capacity: 620 Ah.

Available with lithium-ion technology

High availability thanks to extremely short charging times.
No battery exchange is required.
Saving costs due to longer service life and zero maintenance as compared to lead-acid batteries.
No charging rooms and ventilation are required as there is no build-up of gas.

Comfortable and safe driving

Impulse control: the speed set by the travel switch is maintained under all travel conditions – even on uphill and downhill gradients.
Three adjustable travel programs for individual adaptation to any requirements.
Regenerative braking with energy recovery when slowing down.
Safe cornering with curveCONTROL automatic speed reduction – the operator has the truck under control at all times.

Always informed

Extensive display and setting instruments always provide a complete overview.
CanDis (optional) provides information on the battery discharge status, number of operating hours and error codes.
Activation of the truck via PIN code and selection of 3 travel programs via keypad (optional).
Adjustable travel parameters via CanDis and CanCode (optional).

Optimum ergonomics

Low stand-on platform for frequent and effortless entry and exit.
Short distances for the operator between the cab and the coupling or the load.

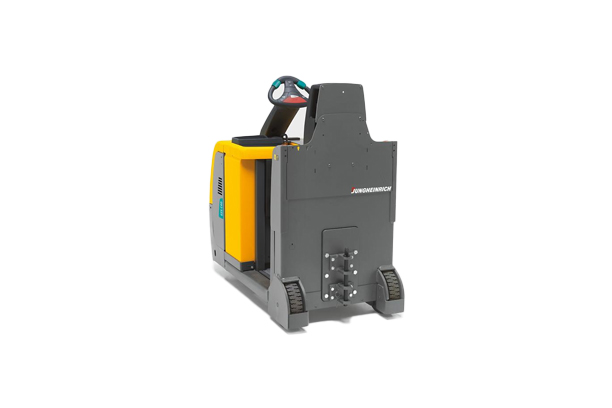

The coupling is clearly visible from any position and is also easily accessible.
Fast and easy trailer coupling and decoupling with semi-automatic remote release from the operator platform (optional).
jetPILOT electric steering wheel.
Range of coupling systems for various trailer types.
All wheels are superelastic (including the drive wheel) to ensure maximum comfort.

Rugged construction for the toughest applications

Frame made from high-grade 8mm steel sheet.
Extra-high frame apron on front cover.
SE tires – including on the drive wheel – to protect the operator and tow tractor.
High ground clearance.

Additional features

Non-marking superelastic tires.
Inching controls on both sides in the backrest for simple coupling and decoupling.
Remote coupling release.
Extra steel or rubber bumper.
Holder for radio data components.
Folding operator seat for relaxed travel.

Model Overview

Model	Towing capacity load	Travel speed	Overall length	Battery voltage
EZS C40	4,000 kg	12.5 km/h	1,659 mm	24 V
