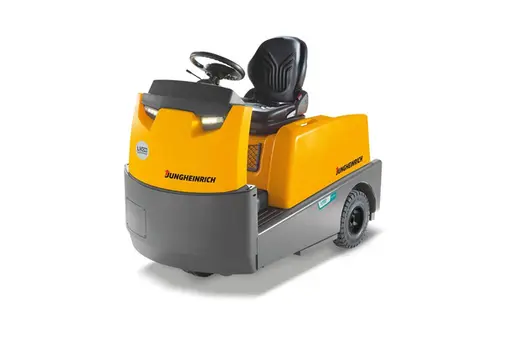

Our solid and dynamic Series 5 sit-on tow tractors are ideal for the efficient transport of loads up to 10 t in the tow train – especially in combination with trailers from Jungheinrich.

Rely on solid power for indoor and outdoor use with a sturdy steel frame that will surely last the whole life of the tow tractor.

The powerful and efficient drive concept is supported by a 48-V 3-phase AC motor with fast acceleration and high-end speeds.

The coupling, which is available in different versions, is clearly visible from the seated position and easy to reach. The fully sprung chassis protects the operator's back as well as the truck.

A spacious and comfortable operator position offers ample legroom, while controls such as the steering wheel, travel direction switch, and indicator lever are all within easy reach. The low step tread allows effortless entry.

✔ Robust construction also for outdoor use.

✔ Fully sprung chassis for comfortable working.

✔ Automatic parking brake with roll-back protection.

✔ Impulse control.

✔ Powerful, maintenance-free 3-phase AC drive motor.

Li-Ion

	No worries. No compromise. With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.
	100 % satisfaction. Guaranteed. We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Features

Innovative 3-phase AC technology

More power and performance while simultaneously reducing operating costs due to maintenance-free 3-phase AC technology.
High-efficiency levels with excellent energy management.
Powerful acceleration and high travel speeds even with load.
Rapid direction change.
Maintenance-free drive motor.
2-year warranty on driving motor.

Long operating times with lead-acid battery

Energy-efficient 3-phase AC technology and high battery capacities allow for long operating times.
XL version allows the use of forklift truck batteries (e.g. batteries of the electric 3-wheel forklift EFG 213-220).
Standard version: 3 PzS 345 Ah.
XL battery compartment: 5 PzS 625 Ah.

Available with lithium-ion technology

High availability thanks to extremely short charging times.
No battery exchange is required.
Saving costs due to longer service life and zero maintenance as compared to lead-acid batteries.
No charging rooms and ventilation are required as there is no build-up of gas.

Comfortable and safe driving

The fully sprung frame with springs and shock absorbers guarantees traction at all times.
The automatic parking brake ensures reliable starting and roll-back protection on gradients.
Impulse control: the speed set via the accelerator pedal is maintained in all travel conditions.
Energy recovery: Regenerative braking when decelerating.
The programmable crawl speed button allows travel at reduced speed.
Three alternative travel programs can be set to suit individual needs.
2-stage LED lights (daytime running lights, travel lights).

Robust and safe

Frame made from high-grade 8mm steel sheet.
Extra-high chassis apron to the front.
Robust LED lights: Front lights, rear lights, and indicators (optional).
Lateral protection is provided by skirting (optional).

Always informed

Extensive display and setting instruments always provide a complete overview of the battery discharge
status, number of operating hours, speed, and error codes.
Activation of the truck via PIN code (optional).
Adjustable travel parameters.

Optimum ergonomics

Easy entry and exit due to the low footstep.
Spacious operator position with large footwell and ergonomic footrest.
Short distances from the operator position to the coupling and load.
Clearly visible, easily accessible coupling.
Reverse button for simple coupling and decoupling (optional).
Superelastic wheels, also non-marking (optional).
Well organized with many storage areas.

Extensive additional features

Reversing/inching control for comfortable coupling and decoupling.

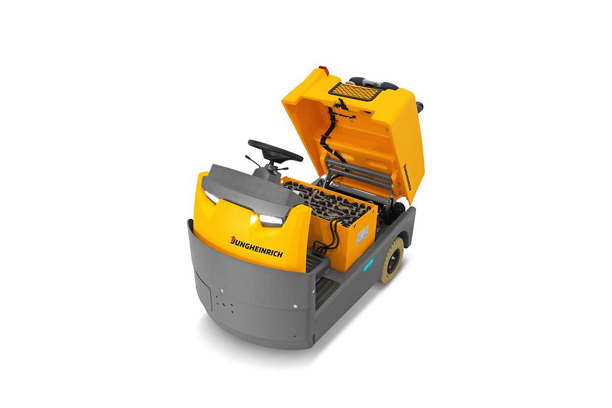

Lateral battery exchange for easy changing.
Additional steel bumper.
Holder for radio data components.
Different couplings.
Hydraulic or electric supply connections for our GTE trailers.
Comfort charging: Charging of the built-in battery with closed panels.
Cabs with various equipment options for outdoor use.
Further options for the right configuration of the tow tractor.

Model Overview

Model	Towing capacity load	Travel speed	Overall length	Battery voltage
EZS 570	7,000 kg	18 km/h	1,828 mm	48 V
EZS 580	8,000 kg	18 km/h	1,828 mm	48 V
EZS 590	9,000 kg	18 km/h	1,828 mm	48 V
EZS 5100	10,000 kg	18 km/h	2,048 mm	48 V
