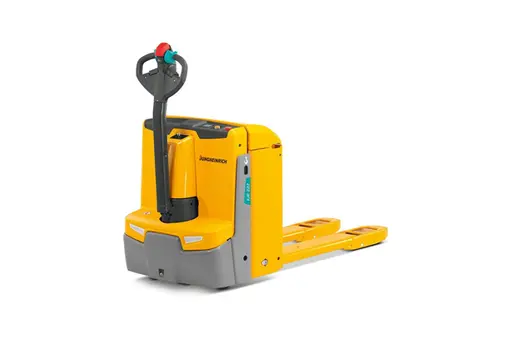

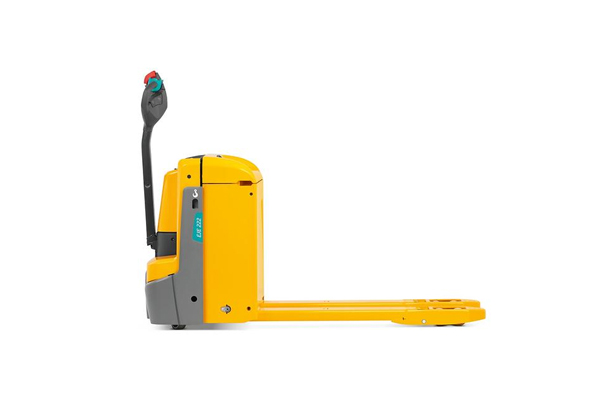

The maneuverable and particularly powerful EJE Series 2 pedestrian pallet trucks leave a lasting impression with their extremely high throughput and their low-maintenance 3-phase AC drive motors. The powerful lift motor ensures the fast transport of heavy goods.

Whether using our long-lasting lead-acid batteries or innovative lithium-ion technology, the EJE 2 with energy management reaches its maximum speed easily, even with the heaviest loads.

Particularly important when handling heavy goods, safety is key with the EJE 2. For example, the long low-mounted tiller ensures a safe distance between the truck and the operator.

With its particularly robust steel frame, reinforced fork construction, and low-abrasion support wheels, the EJE 2 pallet truck is extremely low-maintenance.

Extra-large batteries also mean that they are always on hand, even for the toughest and longest applications. For reliable and efficient goods throughput in your everyday warehouse operations.

✔ Powerful 3-Phase AC technology for maximum performance

✔ Long foot protection tiller (optional)

✔ Perfect driving stability with its ProTracLink-System

✔ Robust steel chassis for high durability

✔ Quick and easy to maneuver due to its short front-end dimension

Li-Ion

	No worries. No compromise. With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.
	100 % satisfaction. Guaranteed. We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Features

High-performance 3-phase AC technology

High-efficiency levels with excellent energy management.
Fast acceleration.
Quick change of direction without delay.
2-year warranty on driving motor.

Professional battery management

Energy-saving 3-phase AC technology in combination with battery capacities of up to 375 Ah allow for particularly long operating times.
Multi-shift operation with the optional lateral battery exchange.

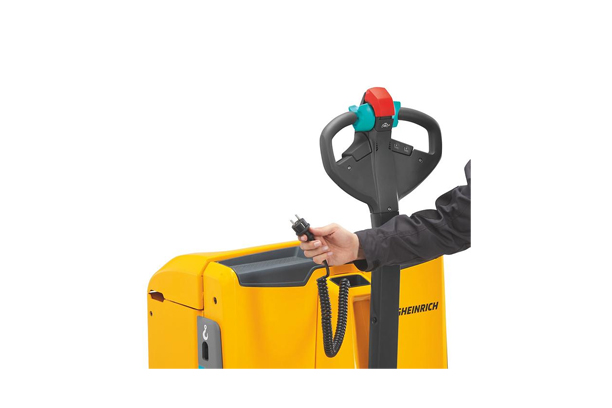

Built-in charger (optional) for straightforward charging at any power outlet – also available with a quick charge function for charging during a shift.

Available with lithium-ion technology

High availability thanks to extremely short charging times.
No battery exchange is required.
Saving costs due to longer service life and zero maintenance as compared to lead-acid batteries.
No charging rooms and ventilation are required as there is no build-up of gas.

Robust design for the toughest applications

7 mm high-grade steel apron on the front of the frame.
High residual capacities due to reinforced fork construction.
2-year warranty on driving motor.
Fast acceleration.

Optimum cornering

Sprung and cushioned support wheels – linked via the ProTracLink torsion bar – distribute equalizing forces dependent on travel conditions.
Perfect for loading and unloading HGV as well as the work on ramps.

Lower maintenance costs

Maintenance-free 3-phase AC drives motor without carbon brushes.
Easy access to all components through a one-piece front cover secured by only two screws.
Excellent protection against dust and humidity through IP 54 enclosure of controller and plugs.
Reduced support wheel wear when approaching ramps at an angle thanks to level equalization.
Wide traction wheel and support wheels of the coupling rocker (option) ensure a safe drive even around longitudinal joints (e.g. cold store trailers).

Ergonomic tiller head

A clear color coding system and buttons with abrasion-resistant symbols for intuitive operation.
Crawl the speed button on the underside of the tiller arm for quick access and easy operation with the tiller in the vertical position.
Non-contact sensor system with IP 65 protection, hence the lowest risk of breakdown.
Rocker switch for consistently good operation in all tiller positions.
Foot protection tiller (optional).

Always informed

Optional 2-inch display as a central tool with information on a battery charge, hours of operation, error codes, and the choice between three different driving programs.
Activation of the truck through key or soft key, PIN code, or transponder card (optional).

Additional equipment

Load guard.
Cold store version.
Entry rollers.
SilentDRIVE for quiet use.

Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
EJE 222	2,200 kg	122 mm	6 km/h	1,737 mm	24 V
EJE 225	2,500 kg	122 mm	6 km/h	1,737 mm	24 V
