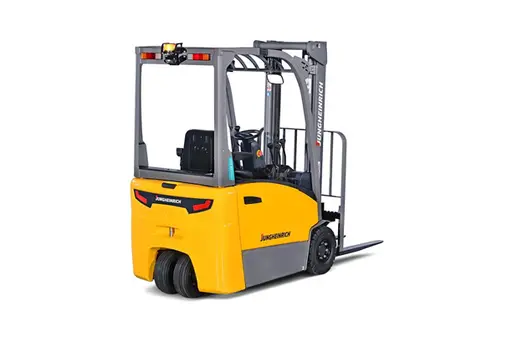

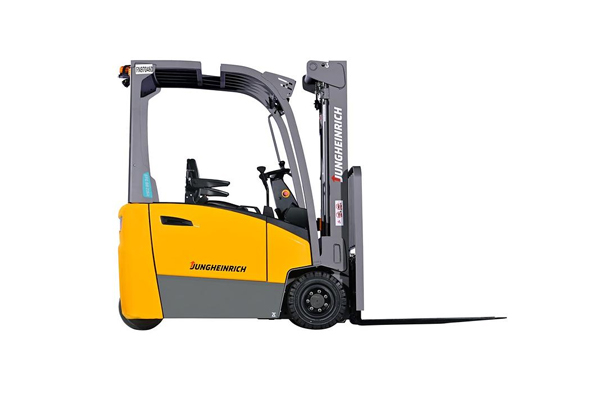

Our solid and versatile EFG electric forklift trucks of the BB Series are ideally suited to a wide range of transport and stacking tasks.

Thanks to the compact design, the manoeuvrable three-wheel counterbalance forklift truck is particularly convincing for flexible transport in confined warehouse environments.

The dual-motor front-wheel drive with ZF gearbox and intelligent control technology ensures consistently high performance with low consumption.

Intelligent assistance systems and safety functions such as strobe lights or warning zone lights guarantee maximum safety during work. In addition, the truck impresses with reduced maintenance requirements, impressive economy and low overall operating costs.

Durable, high-quality components and rigorous quality testing ensure reduced wear and reliable truck operation at all times.

✔ Compact design for maximum flexibility in confined spaces

✔ Minimised turning radius thanks to dual-motor front-wheel drive

✔ Intelligent control and energy-efficient operation guarantee maximum goods throughput

✔ High residual capacity thanks to the truck's low centre of gravity

✔ curveCONTROL for more safety and increased comfort

Features

Energy-efficient operation

Proven AC technology for high performance with low energy consumption.
Optimized energy efficiency for longer operating times.
Energy recovery through regenerative braking.
Excellent acceleration, optimum travel, and lift speed as well as maximum throughput thanks to Jungheinrich control.

Maintenance-free dual motors

Minimized turning radius and reduced tire wear thanks to dual-motor front-wheel drive with ZF gearbox.
Long service life even in dusty and humid conditions.
Fully enclosed and protected up to IP54.
High torque for rapid work cycles.

Comfortable and safe operation

The truck's low centre of gravity, combined with the stable mast profile, ensures a high residual capacity.
curveCONTROL for automatic speed reduction when cornering.
Speed reduction to 3 km/h as soon as the mast is above the platform and the forks are raised more than 800 mm from the ground.
Deactivation of the drive and hydraulic functions if seat is unoccupied.
Reliable data transfer between electronic components via interface.
IPX5 protection rating for the entire truck.

Additional safety functions

Floor-Spot for warning pedestrians in the vicinity.
Strobe light with various modes.
Seat belt with contact switch.
Maintenance-free wet disc brake with high reliability and low service costs.
driveCONTROL controls the travel speed from a defined lift height.

Strong and concise design

Sturdy frame design for optimum truck stability.

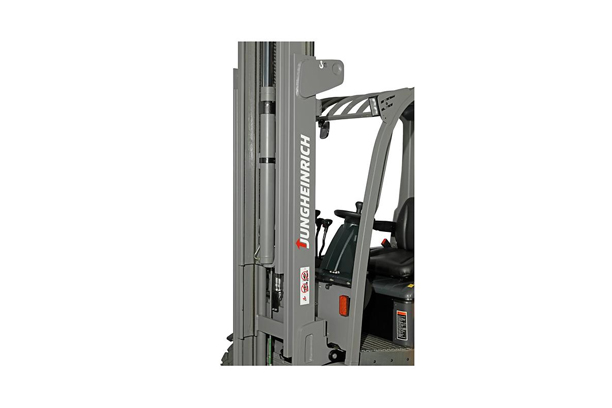

Mast and fork carrier allow a clear view of the load and the travel route.
LED work light provides the best visibility in dark areas and reduces maintenance costs.
The compact design and the minimised turning radius of the truck enable operation in very confined spaces.

Various equipment options

Comprehensive safety package with strobe light, warning zone lights and acoustic warning signal.
Available in cold store version.
Lift heights from 3,000 to 6,500 mm.

Model Overview

Model	Load Capacity	Lift height	Travel speed	Overall length	Battery voltage
EFG BB 216k	1,600 kg	6,500 mm	15 km/h	2,899 mm	48 V
