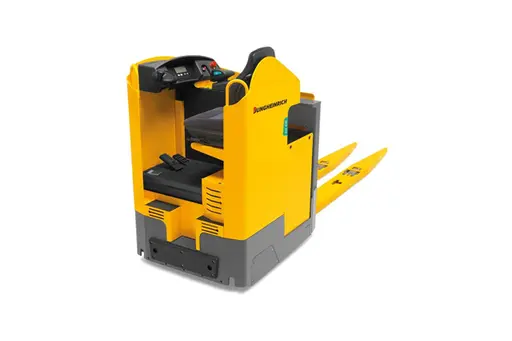

The safe and robust ESE Series 4 electric sideways-seated pallet trucks are ideal for the transport of multiple pallets over longer distances.

Their 48-V 3-phase AC motors ensures dynamic motion sequences and high end speeds for maximum efficiency and goods throughput.

To guarantee smooth processes, the ESE offers a high degree of safety and ergonomics: Speed, brakes and emergency stop switch are all controlled by easily reached pedals.

The lift is easily operated using the soloPILOT control lever, which is readily to hand. The optional height-adjustable footplate and the adjustable steering wheel ensure comfortable sideways seating positions for all operators.

Additionally, the steering mode can be switched between 180° and 360° for easy and quick direction changes. With its extremely high battery capacities and extremely robust construction, the ESE is the ideal truck for intensive and long applications.

✔ Multi-pallet transportation (of up to 3 pallets)

✔ Ergonomic operator position layout

✔ 180°/360° steering for quick direction changes

✔ High travel speeds and 3-phase AC technology

✔ 48-V 3-phase AC technology for dynamic movement

Features

Greater efficiency with 3-phase AC technology

Powerful acceleration.
The high degree of operational availability thanks to a maintenance-free drive motor without carbon brushes.
2-year warranty on driving motor.

Efficient energy management

Powerful lead-acid battery: 4 PzS 620 Ah.
Optimum energy supply with battery power from 375 AH to 500 Ah in the ESE 120 and 465 Ah in the ESE 220 and 320.
Quick and easy lateral battery exchange.

Robust and safe

Robust frame for continuous use at full-rated load.
Torsion-resistant forks manufactured with strong reinforced steel are available in a wide variety.

Lower maintenance costs

Maintenance-free 3-phase AC drives motor without carbon brushes.
Easy to service with outstanding accessibility to all components.

Easy-to-read operator display

High-quality control instrument for displaying the most important operating data. Display of direction of travel and wheel position.
Steering setting.
Battery status, with a display of time remaining until the next charge is required.
Speed.
Elapsed distance.
3 adjustable travel programs for individual adjustment to any requirements.
Operating hours and time of day.

Ergonomic cockpit

Adjustable seat (seating position/body weight) for all operators.
Footplate with an adjustable rake (optional).
The automotive layout of the pedals.
Generous space.
180°/360° 3-phase AC steering with optimized steering wheel position.
Steering wheel adjustment

Easy operation with solo pilot

Activation of all hydraulic functions as well as selecting the direction of travel and activation of the horn.
All the controls are within the operator's field of vision and are clearly designated for each specific function.
Precision operation due to control of all functions.
Comfortable armrest.

Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
ESE 430	3,000 kg	115 mm	14 km/h	3,625 mm	48 V
