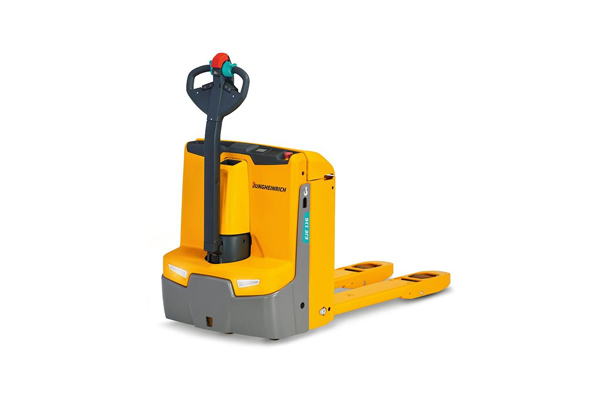

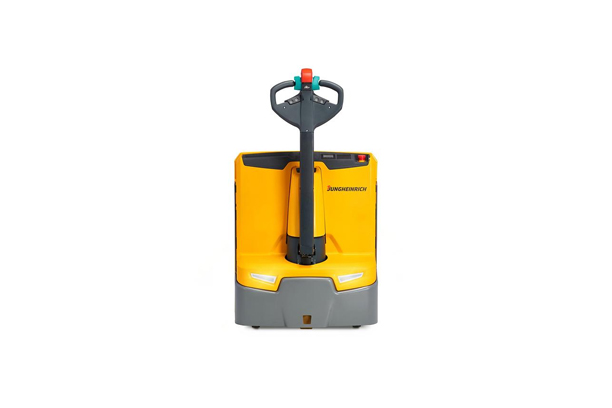

The maneuverable and economic electric pedestrian-controlled trucks from the EJE 1 series are ideal for loading and unloading HGVs as well as the daily transport of pallets over short distances.

Due to their compact size and lightweight, they are the perfect truck-mounted forklift. The support wheels, installed on each side, increase the stability during maneuvering.

A safe distance between the truck and the operator is ensured by the low-mounted long tiller. This is particularly beneficial when cornering.

Our 3-phase AC motors offer high-efficiency levels, thus the EJE 1 is available for long operations with constantly high performance.

With its quick and easy lateral battery change, optionally available from EJE 116, this truck is an efficient companion, even during multi-shift operations. Additionally, the extremely long-living lead-acid batteries sustainably reduce operating costs.

This new generation of our Jungheinrich classic is thus the premium product in its segment.

✔ Ideal for loading and unloading HGV and as a truck-mounted forklift

✔ Compact and maneuverable due its short chassis length

✔ Outstanding driving stability for daily pallet transport

✔ Powerful and maintenance-free 3-phase AC motors

✔ Built-in charger for quick and easy battery charging (optional)

Features

High-performance 3-phase AC technology

High efficiency levels with excellent energy management.
Fast acceleration.
Quick change of direction without delay.
2-year warranty on driving motor.

Professional battery management

Energy saving 3-phase AC technology in combination with battery capacities of up to 375 Ah allows for particularly long operating times.
Multi-shift operation with the optional lateral battery exchange.

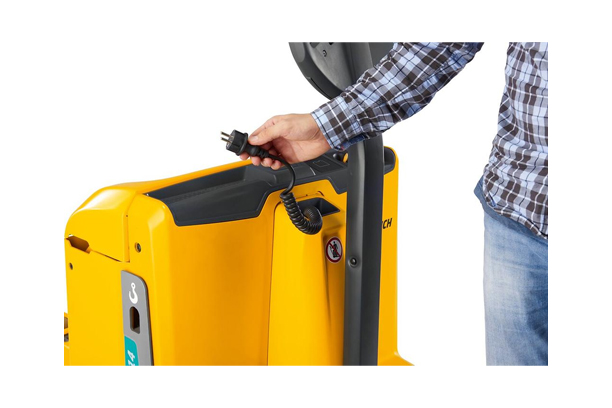

Built-in charger (optional) for straightforward charging at any power outlet – also available with a quick charge function for charging during a shift.

Optimum cornering

Sprung and cushioned support wheels linked via the ProTracLink torsion bar distribute stabilizing forces dependent on travel conditions.
Evenly over all wheels during straight-line travel.
Concentrated on the outer support wheel when cornering.

Optimized pallet entry

Forks with fork tips tilted by 3° ensure a smooth entry into closed pallets.
A large number of entry and exit aids makes pallet handling even easier. Moreover, all forks have a mark for receiving transverse pallets. This minimizes pallet damage.

Lower maintenance costs

Maintenance-free 3-phase AC drives motor without carbon brushes.
Easy access to all components through a one-piece front cover secured by only two screws.
Excellent protection against dust and humidity through the enclosure of the controller and plugs in accordance with IP 54.
ProTracLink: Level equalization ensures reduced support wheel wear when approaching ramps at an angle.
Wide-tread version (optional): Wide-drive wheel and wide support wheels of the torsion bar ensure a safe ride, even on longitudinal joints (e.g. cold store trailers).

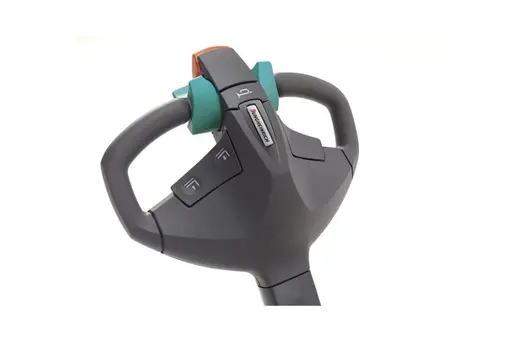

Ergonomic tiller head

A clear color coding system and buttons with abrasion-resistant symbols for intuitive operation.
Optimally adaptable grip position.
Crawl the speed button on the underside of the tiller arm for quick access and easy operation with the tiller in the vertical position.
Non-contact sensor system with IP 65 protection, hence the lowest risk of breakdown.
Rocker switch for consistently good operation in all tiller positions.

Additional equipment

2-inch- display with battery discharge indicator, hour meter, error codes as well as a choice of 3 driving programs.
Activation of the truck with EasyAccess by softkey, PIN code, or transponder card.
Buzzer instead of horn.
Load guard.
Wide-tread wheels and rollers.
Cold store version.
silent drive.

Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
EJE 114	1,400 kg	122 mm	5 km/h	1,636 mm	24 V
EJE 116	1,600 kg	122 mm	6 km/h	1,636 mm	24 V
EJE 118	1,800 kg	122 mm	6 km/h	1,636 mm	24 V
EJE 120	2,000 kg	122 mm	6 km/h	1,636 mm	24 V
