Description
XLPE (or PVC) insulated cable for electricity and lighting used in low to medium voltage circuit under 33kV.
[Products List]

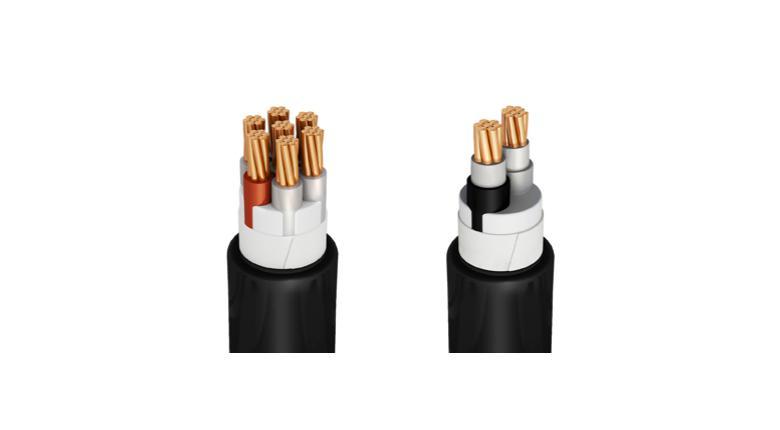

1) 0.6/1kV XLPE Insulated Unarmoured Cable, 0.6/1kV XLPE Insulated Armoured Cable
• APPLICATIONS : For installation in ground, outdoors, indoors and in cable ducts for power stations, industry, and distribution networks
• SPECIFICATION : IEC 60502-1, IEC 60332-3-24 (Only applied for the halogen free flame retardant cable), IEC 61034 (Only applied for the halogen free flame retardant cable)
• CORE IDENTIFICATION : Two core : Red, Yellow / Three core : Red, Yellow, Blue / Four core : Red, Yellow, Blue, Black

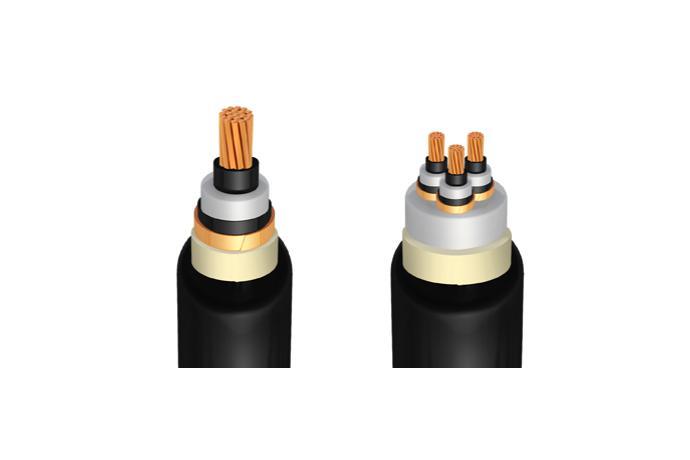

2) 6/10kV XLPE Insulated Unarmoured Cable, 6/10kV XLPE Insulated Armoured Cable
3) 8.7/15kV XLPE Insulated Unarmoured Cable, 8.7/15kV XLPE Insulated Armoured Cable
4) 12/20kV XLPE Insulated Unarmoured Cable, 12/20kV XLPE Insulated Armoured Cable
5) 18/30kV XLPE Insulated Unarmoured Cable, 18/30kV XLPE Insulated Armoured Cable
• APPLICATIONS : For installation in ground, outdoors, indoors and in cable ducts for power stations, industry, and distribution networks
• SPECIFICATION : IEC 60502-2, IEC 60332-3-24 (Only applied for the halogen free flame retardant cable), IEC 61034 (Only applied for the halogen free flame retardant cable)
• CORE IDENTIFICATION : Three core : Red, Yellow, Blue or 1ONE. 2TWO. 3THREE
6) 15kV Underground Cable
7) 25kV Underground Cable
8) 35kV Underground Cable
• APPLICATIONS : This Cable is used for 15kV power and distribution circuits in industrial and commercial installation. It may be installed on conduit, duct, tray or directly buried. Safe from ingress of humidity
• SPECIFICATION : ASTM B3, ASTM B8, ASTM B230, ASTM B231, ASTM B609, ANSI/ICEA S-94-649, AEIC CS-8, UL 1072,
XLPE (or PVC) insulated cable for control used in low to medium voltage circuit under 33kV.
• APPLICATIONS : For installation in ground, outdoors, indoors and in cable ducts for power stations, industry, and distribution networks
• SPECIFICATION : IEC 60502-1
[Products List]

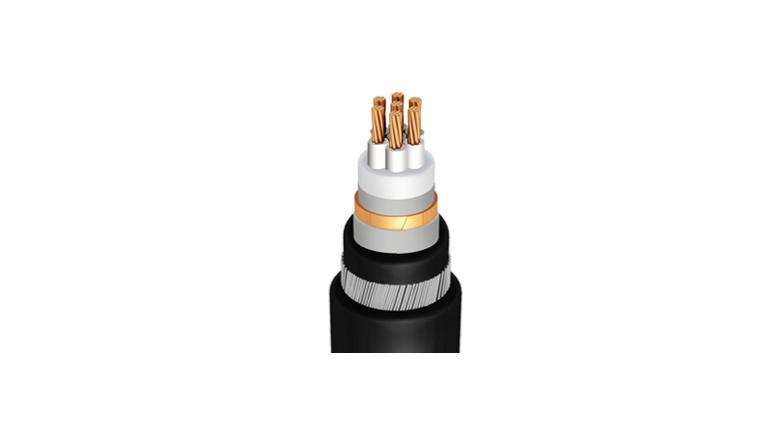

1) 0.6/1kV PVC Insulated Unarmoured Control Cable(0.6/1kV Cu/PVC/PVC)
2) 0.6/1kV PVC Insulated Amoured Control Cable(0.6/1kV Cu/PVC/SWA/PVC)
3) 0.6/1kV PVC Insulated Unamoured Control Cable with common screen(0.6/1kV Cu/PVC/CTS/PVC)
4) 0.6/1kV PVC Insulated Amoured Control Cable with common screen(0.6/1kV Cu/PVC/CTS/SWA/PVC)
5) 0.6/1kV PVC Insulated Unamoured Control Cable with AL Mylar screen(0.6/1kV Cu/PVC/AL Mylar/PVC)
6) 0.6/1kV PVC Insulated Amoured Control Cable with AL Mylar screen(0.6/1kV Cu/PVC/AL Mylar/SWA/PVC)
7) 0.6/1kV PVC Insulated Unarmoured Control Cable with Individual screen(0.6/1kV Cu/PVC/AL Mylar/AL Mylar/PVC)
8) 0.6/1kV PVC Insulated Armoured Control Cable with Individual screen(0.6/1kV Cu/PVC/AL Mylar/AL Mylar/SWA/PVC)
XLPE (or PVC) insulated cable for instrumentation used in low to medium voltage circuit under 33kV.
• APPLICATIONS : For installation in ground, outdoors, indoors and in cable ducts for power stations, industry, and distribution networks
• SPECIFICATION : BS 6746
[Products List]
1) 300/500V PVC Insulated Unarmoured Instrument Cable(300/500V Cu/PVC/AL Mylar/PVC)
2) 300/500V PVC Insulated Armoured Instrument Cable(300/500V Cu/PVC/AL Mylar/SWA/PVC)
3) 300/500V PVC Insulated Unarmoured Instrument Cable with Individual screen(300/500V Cu/PVC/AL Mylar/AL Mylar/PVC)
4) 300/500V PVC Insulated Armoured Instrument Cable with Individual screen(300/500V Cu/PVC/AL Mylar/AL Mylar/SWA/PVC)
