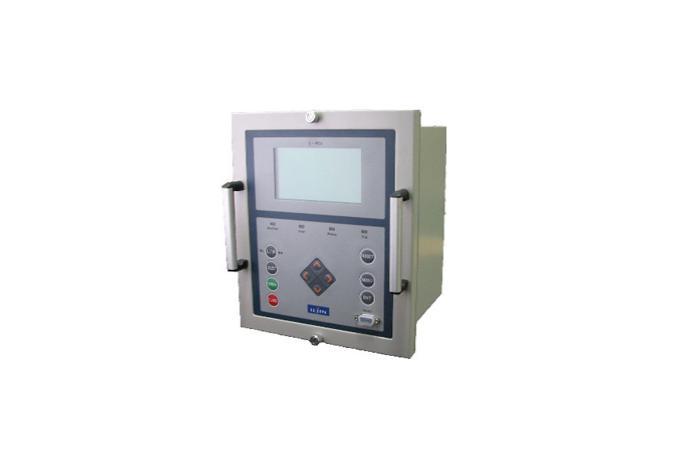

i-PCU is a multi-functional power monitoring device including various protecting and metering elements for protection and monitoring of distribution and switching facilities and switchgear control. This product is suitable for protecting the feeder and bus for distribution lines and switching facilities or backup protection of transformers.
Iljin Digital Protection Relay controls switches for integrated monitoring and control of distribution and switching systems. It can also measure and record voltage, current, frequency, power factor, power level and power consumption.
[Feature & Advantage]
1. Protects from various forces and minimizes the power down section
2. Configures contacts by internal programmable logic
3. Harmonics analysis
4. Presents vector diagram for voltage, current and phase
5. Provides current-time characteristic graph for relays
6. Provides operation history by recording events and wave shapes
7. Provides self-diagnostics to monitor the operating status
8. Adopts a draw-out type to facilitate replacement and A/S
This product carries out automatic breaking and closing for an unmanned outdoor system (equipment) without manual control in the event of transient overload or breaker malfunction due to external environmental factors (surge, lightning impact, etc).
Transient overload or breaker malfunction in an unmanned outdoor system (equipment) is frequently caused by external environmental factors (surge, lightning impact, etc).

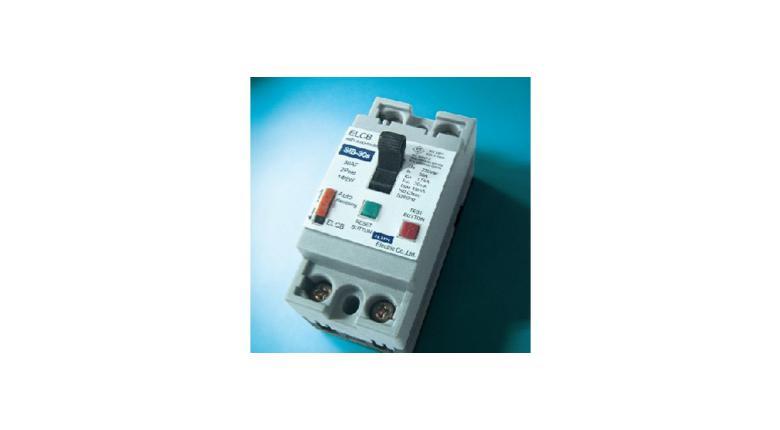

The Intelligent ELCB is designed to meet these conditions with automatic breaking and closing without manual control in the event of transient overload and breaker failure.
This product gives optimum effects when applied to hard-to-reach devices such as a repeater, road lamp, security lamp, overspeed camera, etc.

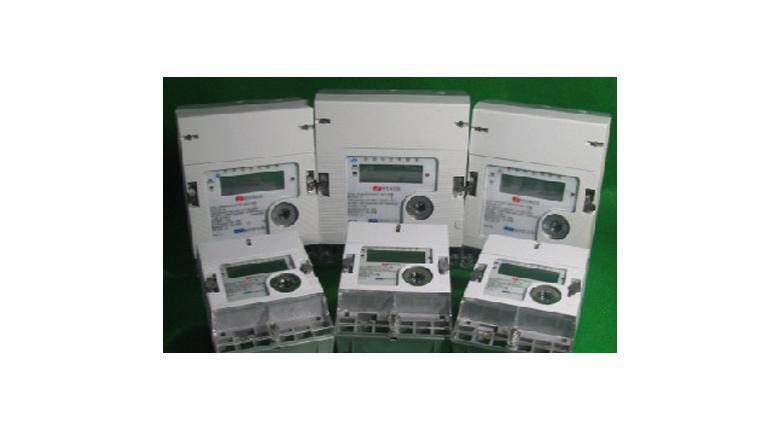

Unlike existing electric power meters requiring on-site inspection by a meter man, the Iljin Digital Electric Power Meter provides various services such as remote inspection through the built-in modem.
Unlike existing electric power meters requiring on-site inspection by a meter man, the Iljin Digital Electric Power Meter provides various services such as remote inspection through the built-in modem.
[Feature & Advantage]
1. Implements precise inspection and metering of Class 1.0 and better through high reliability and precision design technology
2. Provides various types of power consumption and power information such as valid/invalid power level, power consumption, maximum power demand, power factor, power rate with time, etc.
3. Adopts a nonvolatile memory to save various types of billing data
4. Provides various types of modems to be equipped in the body to support remote inspection and control
5. Constantly monitors abnormal status of the instruments to effectively check fault of the line and meter
6. Acquired a type approval from Korean Agency for Technology and Standards in pursuant to the applicable metering law
