Ultrasonic Cleaning System Manufacturer, Ultrasonic Generator and Oscillator, Automatic Ultrasonic Cleaning System and more

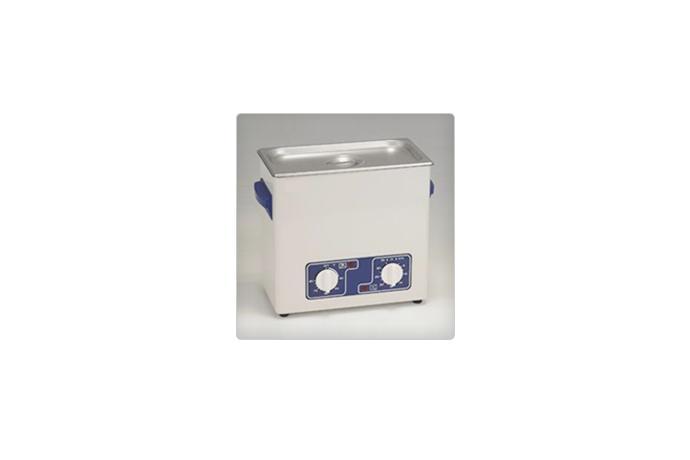

It is economical because it produces less failures due to the use of a non-damageable oscillator (B.L.T.), and it delivers outstanding cleaning performance through using high vibration waves. It is suitable for simple cleaning activities for laboratories, school laboratories, hospitals, and jewelry.
Bore: 150 (width) *135 (length) *100 (height)
Capacity: 1.8L
Ultrasonic Frequency: 40KHz
Ultrasonic Output: 50W
Total Weight: 2.7kg
Heater Capacity: 85W
Rated Voltage: AC220V / 60Hz
Use Time: 0 to 30 minutes
Temperature: 30 to 85 degrees ± 10%
Materials: SUS304
Bore: 240 (width) *140 (length) *100 (height)
Capacity: 3.3L
Ultrasonic Frequency: 40KHz
Ultrasonic Output: 100W
Total Weight: 4.2kg
Heater Capacity: 170W
Rated Voltage: AC220V / 60Hz
Use Time: 0 to 30 minutes
Temperature: 30 to 85 degrees ± 10%
Materials: SUS304
Bore: 290 (width) *150 (length) *150 (height)
Capacity: 6L
Ultrasonic Frequency: 40KHz
Ultrasonic Output: 150W
Total Weight: 5.6kg
Heater Capacity: 170W
Rated Voltage: AC220V / 60Hz
Use Time: 0 to 30 minutes
Temperature: 30 to 85 degrees ± 10%
Materials: SUS304
Bore: 290 (width) *240 (length) *150 (height)
Capacity: 10L
Ultrasonic Frequency: 40KHz
Ultrasonic Output: 200W
Total Weight: 7.2kg
Heater Capacity: 255W
Rated Voltage: AC220V / 60Hz
Use Time: 0 to 30 minutes
Temperature: 30 to 85 degrees ± 10%
Materials: SUS304
Bore: 500 (width) *300 (length) *150 (height)
Capacity: 22L
Ultrasonic Frequency: 40KHz
Ultrasonic Output: 300W
Total Weight: 11kg
Heater Capacity: 340W
Rated Voltage: AC220V / 60Hz
Use Time: 0 to 30 minutes
Temperature: 30 to 85 degrees ± 10%
Materials: SUS304
ANALOGUE Specifications
| Code | HS-120 | HS-200 | HS-250 | HS-300 | HS-350 | |
|---|---|---|---|---|---|---|
| Capacity Liters | 21.8L | 3.3L | 6L | 10L | 22L | |
| Drain | NO | NO | NO | YES | YES | |
| Tank Dimension(mm) | Depth | 100 | 100 | 150 | 150 | 150 |
| Length | 150 | 240 | 290 | 290 | 500 | |
| Width | 135 | 140 | 150 | 240 | 300 | |
| Overall Dimension(mm) | Height | 211 | 250 | 290 | 310 | 315 |
| Length | 177 | 300 | 300 | 390 | 600 | |
| Width | 162 | 166 | 178 | 270 | 335 | |
| Generator Power(w) | 60 | 100 | 150 | 200 | 300 | |
| Freouency(Khz) | 40 | 40 | 40 | 40 | 40 | |
| Weight | 2.7 | 4.2 | 5.6 | 7.2 | 11 | |
A multi-frequency oscillator, as an oscillator helping maximize output efficiency, can maximize output efficiency by oscillating a designated frequency but also outputting multiple frequency bands. This multi-frequency oscillator is compared to a current BLT which only oscillates frequencies in a designated band of frequency.
Bore: 290 (width) *150 (length) *150 (height)
Capacity: 6L
Ultrasonic Frequency: 40KHz
Ultrasonic Output: 150W
Total Weight: 6kg
Heater Capacity: 170W
Rated Voltage: AC220V / 60Hz
Use Time: 0 to 60 minutes
Temperature: 30 to 85 degrees ± 10%
Materials: SUS304
Bore: 290 (width) *240 (length) *150 (height)
Capacity: 10L
Ultrasonic Frequency: 40KHz
Ultrasonic Output: 200W
Total Weight: 8.5kg
Heater Capacity: 255W
Rated Voltage: AC220V / 60Hz
Use Time: 0 to 60 minutes
Temperature: 30 to 85 degrees ± 10%
Materials: SUS304
Bore: 500 (width) *300 (length) *150 (height)
Capacity: 22L
Ultrasonic Frequency: 40KHz
Ultrasonic Output: 400W
Total Weight: 14.5kg
Heater Capacity: 340W
Rated Voltage: AC220V / 60Hz
Use Time: 0 to 60 minutes
Temperature: 30 to 85 degrees ± 10%
Materials: SUS304
Digital Specifications
| Code | HS-D250 | HS-D300 | HS-D400 | |
|---|---|---|---|---|
| Capacity Liters | 6L | 10L | 22L | |
| Drain | NO | YES | YES | |
| Tank Dimension(mm) | Depth | 150 | 150 | 150 |
| Length | 290 | 290 | 500 | |
| Width | 150 | 240 | 300 | |
| Overall Dimension(mm) | Height | 300 | 310 | 315 |
| Length | 350 | 390 | 600 | |
| Width | 176 | 270 | 335 | |
| Generator Power(w) | 150 | 200 | 300 | |
| Freouency(Khz) | 40 | 40 | 40 | |
| Weight | 6 | 8.5 | 14.5 | |
