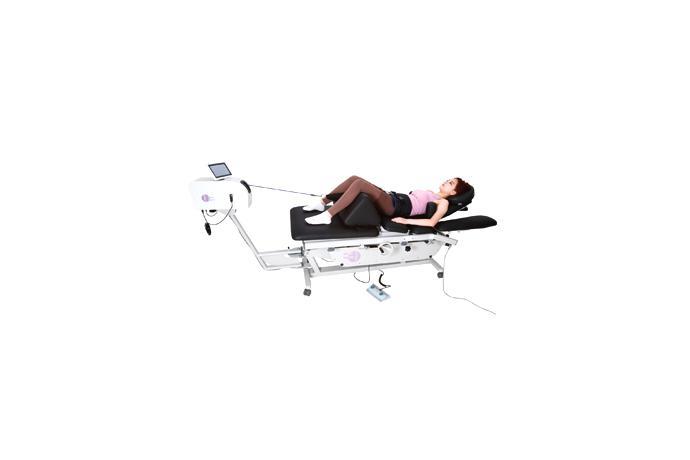

This automatic traction unit is designed to trsck the cervical, lumbar vetebrae, wrist, pelvis, etc. The model consists of a treatment table(HBD-D4) and a control unit(HDT-1000) with a safety device.

▶  Specifications
 Power Supply : AC220V 50/60Hz
 Power Consumption : HBD-D4 200VA, HDT-1000 50VA
 Pulling Power : Max 90kg
 Pulling Speed : 6 steps (50%(0.9mm/sec)~100%(1.8mm/sec))
 Timer : 1~99min
 Hold/Standby Time : 1~60sec
 Max Height : 100cm
 Min Height : 50cm
 Allowable Load : Max 135kg

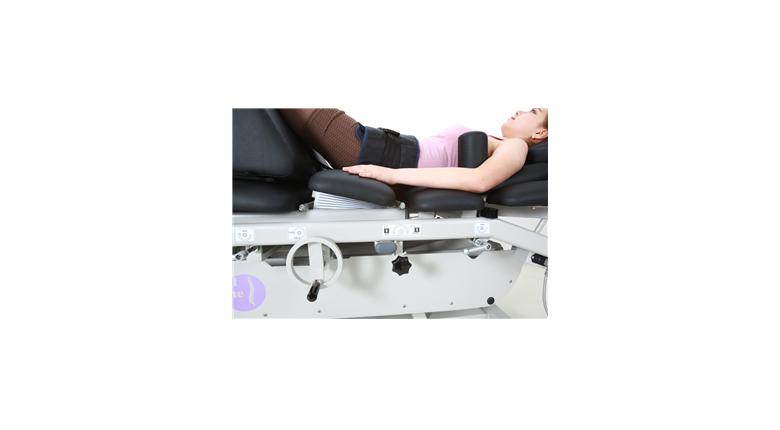

 Regional Correction Range : Thoracic(-15º~35º), Pelvis(0º~18º), Leg(0º~45º)
Dimension & Weight : HBD-D4 2000x680x980(H)cm 122kg HDT-1000 400x170x360(H)cm 122kg
