HANIL-TM
HANIL-TM
Description
Daily movement is one of the preconditions to keep the function of our body intact and remain active. This motor-driven movement therapy applies particularly to people with restricted movement due to an existing basic disease (e.g. MS, stroke) or after accidents. A lack of movement can be the main cause of a whole number of disturbance of health like circulation disturbance, cold legs, and stiffness in the joints.
In these cases the motor driven EMT-PLUS exercisers have proved themselves very well.
▶ Specification
Power Supply : AC 220V, 60Hz
Power Consumption : 150W
Speed of Revolution : 5~55 RPM
Speed of Resistance : 1~15 stage
Timer : 5~60min (selectable by 5min)
Dimension : 620×600×920(H)mm
Weight : 65kg

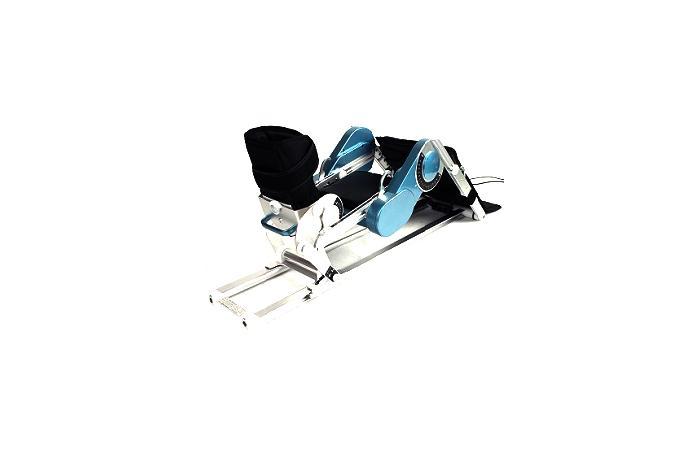

Continuous Passive Motion(CPM) Machine is to be used during the first phase of rehabilitation following a soft tissue surgical procedure or trauma. Relax-K3 is designed to use postoperatively for total knee replacement and Anterior Cruciate Ligament (ACL) reconstruction.
► Features
Wide range of motion from -10° to a full 140° at the knee
Lightweight (10Kg) and portable
Minimize anterior tibial translation and joint compression
Simultaneous hip, knee, and ankle motion
► Specifications
Power Supply : Input AC 100~240V, 50/60Hz, 1.5A Output DC 24V, 2.5A
Power Consumption : 50VA
Range of Motion : -10°~140°
Extension : –10°~130°
Flexion : 0°~140°
Speed : Step 1~7(60°/min~300°/min)
Timer : 1~99min
Allowable Load : Thigh(Femur) Max 30Kg, Calf(Tibia) Max 20Kg
Dimension : 967x334x404(H)mm
Weight : 10Kg
