Description

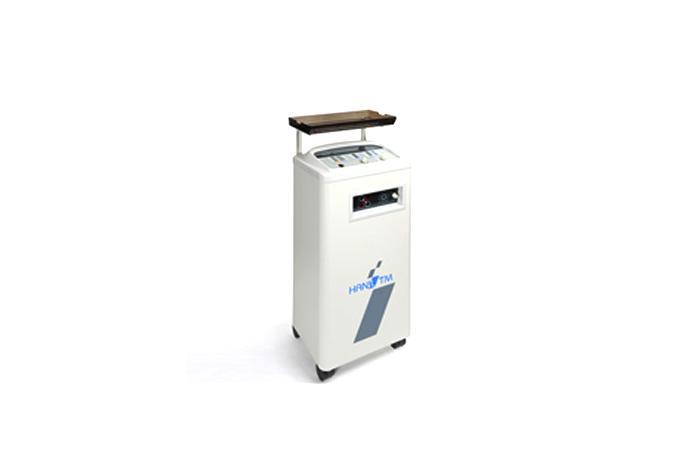

This device is for “Interferential Current Therapy’ that helps to relieve and reduce pain, such as muscular pain, using various medium frequencies coming from electrodes attached on skin surface.
This device is composed of generator, output controller, timer, indicator, power supply, safety device and stimulus electrodes. This device may use for two persons at the same time with two isolated outputs located in left and right sides.
▶ Specifications
Power Supply : AC 220V, 50/60Hz
Power Consumption : 200VA
Output Wave : Sine Wave
Max Output Current : 80mA
Max Output Voltage : 130Vp-p
Stimulus Frequency : 0~1100Hz
Basic Wave Frequency : 3Khz-165us, 4Khz-125us, 5Khz-100us
Timer : 1~99min
Dimension : 338 x 458 x 950(H)mm
Weight : 26kg
* BM-750 (left/right 2-pole/3-pole), BM-760 (left/right 3-pole/3-pole)
▶ Purpose of Use
Relieving and reducing pain
This device provides controlling the interferential frequency, the strength of electric current, the amplitude of frequency, the periodic change of interferential frequency, the intensity of vacuuming and modes for vacuuming cycle.
► Features
Effective treatment is possible by selecting interferential and mediate frequecy.
Treat two patients at the same time in individual programs.
Soft and effective treatment by adjusting the vacuum power and mode with pressure sensor.
▶ Specifications
Power Supply : AC 220V, 50/60Hz
Power Consumption : 140VA
Output Current : 60mA(500ohm)
Basic Frequency : 4000Hz
Flow Frequency : 3880~4000Hz
Interferential Frequency : 3,10, 50, 1~10, 90~120, 1~120Hz
Modulation Range : 25, 50, 75, 100%
Suction Periiod : M1(15 times/min), M2(12 times/min), M3(9 times/min), continuous
Suction Pressure : 1 stage (160mmHg), 2 stage (190mmHg), 3 stage (210mmHg), 4 stage (260mmHg)
Timer : 0~30min (selectable by 5min)
Dimension : 450 x 350 x 940(H)mm
Weight : H-401 25kg, H-402 45kg
* H-401(for one patient), H-402(for two patients)
▶ Purpose of Use
Relieving pain
