Wireless Indoor Air Quality Monitor
Model Name
IAQ-700
Series
Gas Detector
Data
IAQ-700 Spec
Manufacturer information
provider logo
GASDNA

Infrared thermometer manufacturer, .Gas measuring device, Gas detector, Smoke detector, Air quality measuring device and more

Problem with product info?
Update request
Manufacturer
GASDNA
Brand
-
SKU
55011
Product Name
Wireless Indoor Air Quality Monitor
Model Name
IAQ-700
Size
-
Weight
-
Product Details

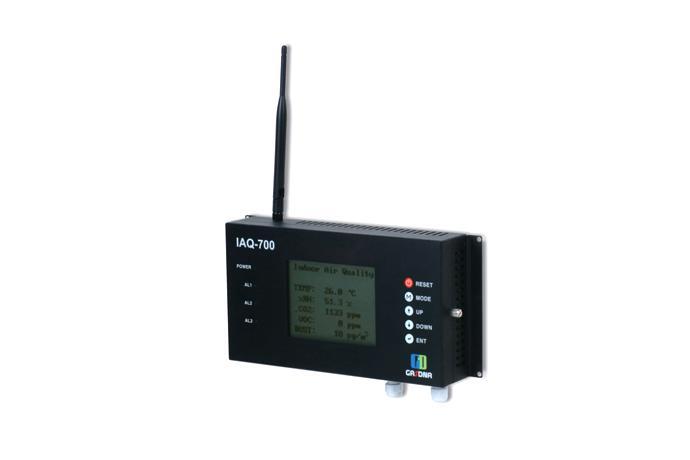

IAQ-700 is a high accuracy indoor air quality monitor, which measure VOC. CO2, Temperature, Humidity and dust.
 Through large size of graphic LCD, it provides real-time monitoring and can transmit data wirelessly through built in ZigBee.
 After install indoor Watch (software), it enable to collect data at a long distance.
 Relay Contact make it possible to interwork with a ventilating system.
 It has been installed to measure Air quality of indoor or underground spaces like Factories, schools, Public places etc.



[ Features ]

ㆍ Multi Gas Measurement
    Measurement of VOC, CO2, Dust, Temperature and humidity at the same time.
ㆍ ZigBee wireless communication
    Can reach max 1.2Km in case of non-obstacle.
ㆍ Real time storage of data
    ‘Indoor Watch’ program enable to transmit data in real time at a long distance
ㆍ Digital Process
    Measurement of VOC, CO2, Dust, Temperature and humidity at the same time.
ㆍ LCD Display with Back-Light
ㆍ Relay Signal-Output
    Provide 2 Step-Relay Contact and interwork with a ventilating system



[ Specification ]


Segment Specification
VOC Detection principle Semiconductor or PID
Measurement range 0 ~ 1000 ppm
Resolution 1 ppm
Accuracy £ ±3%/Full Scale
Response time within 20 seconds, 90%/full scale
CO2 Detection principle NDIR
Measurement range 400 ~ 10,000 ppm
Resolution 10 ppm
Accuracy ≤2% /full scale
Response time Within 30 sec (T90)
DUST Detection principle Light Scattering
Measurement range 0 ~ 500 ㎍/㎥
Resolution 1 ㎍/㎥
Accuracy £ ±3%/Full Scale
Response time Within 10 sec (T90)
Temperature Detection principle Thermister
Measurement range -25 ~ 60 ℃
Resolution 0.2 ℃
Accuracy £ ±2%/Full Scale
Response time Within 10 sec (T90)
Humidity Detection principle Thin Film electronic capacity
Measurement range 0 ~100%RH
Resolution 0.4% RH
Accuracy £ ±3%/Full Scale
Response time Within 15 sec (T90)
Communication ZigBee
Input power DC9V ~ DC24V
Density Display 320×240 DOT Graphic LCD Display
Alarm Display AL-1,AL-2 LED(RED)
Alarm Output 2 Step RELAY CONTACT
Operation Temperature -10℃ ~ 70℃
Operation Humidity 5 ~ 95%RH (Non-Condensing)
Installation Wall Mounting Type
