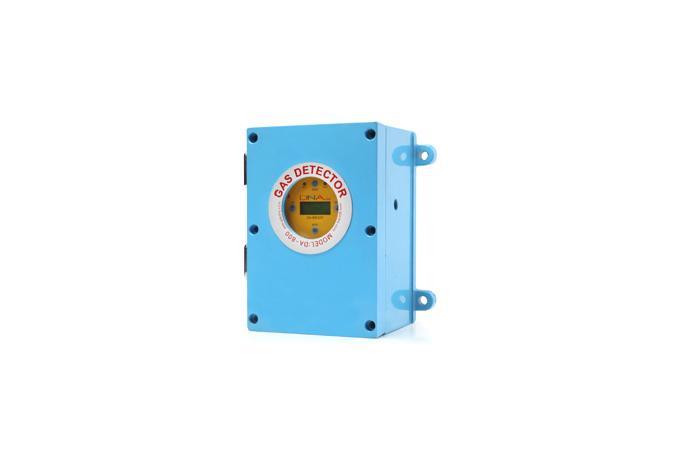

DA-800 detects various combustible & toxic gases leaked from industrial areas for gas producers, gas users, gas reservoirs, gas by-producers, and so on, in order to prevent any accidents in advance. Built-in micro pump for gas sampling enables effective gas detection especially for the environment where diffusion type gas detectors cannot be used. DA-800 converts digital signal into the 4-20mA standard current output signal which can be transmitted to various devices such as PLC, DDC, or recorder to build comprehensive gas monitoring system. Also, DA-800 provides RS-485 communication signal and alarm relay contact. DC 4-20mA standard output signal realizes max 2500m long distance output signal transmission and RS-485 communication signal realizes max 1000m long distance signal transmission.

[ Features ]

ㆍ LCD display with Back Light
ㆍ Built-in HD(high dissolution) A/D converter for accurate output signal.
ㆍ Multi Signal Output
    DC 4-20mA, 2 step-relay contact, & RS-485(option) provides best networking with all kinds of devices & equipments.
ㆍ 4-20mA Transmitter
    4-20mA output enables stable and long distance (maximum 2.5km) signal transmission.
ㆍ RS-485
    RS-485 enables stables stable and long distance (maximum 1.2km) signal communication.
ㆍ Alarm output
    SPST 2 step relay contacts (AL1/AL2).
