Description

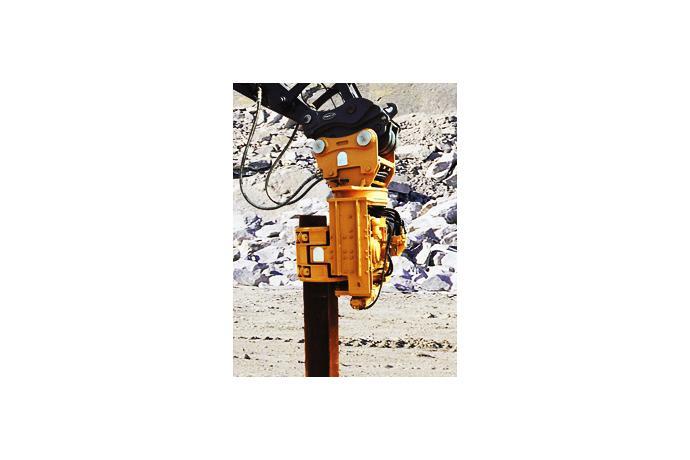

Specification Pite Driver
|
Description |
VIBRO 300SG |
||
|
Working Weight |
Pile Driver |
kg |
1,600 |
|
Extension Boom |
kg |
1,500~2,000 | |
|
Overall Height |
mm |
2,020 |
|
|
Operating Pressure |
Pile Driver |
bar |
200~220 |
|
Chuck |
bar |
200 |
|
|
Required Oil Flow |
Pile Driver |
l/min |
220 |
| Chuck |
l/min |
30 |
|
|
Max. Vibration Force |
tons |
30 |
|
|
Frequency |
cpm |
3,000 |
|
|
Max. Width of Chuck Opening |
mm |
Side? 510 |
|
| Jaw?? 100 | |||
|
Suitable Base Machine |
tons |
26~40 |
|
|
Swing / Tilt Angle |
º |
360 / |
|
|
Sheet Piles |
Width of the Pile |
mm |
400~600 |
| Depth of the Pile |
mm |
100~200 |
|
|
H-beams (Size) |
mm |
H200~400 |
|
|
Tubes (Option) (Size) |
mm |
Order an making Ø80 ~ Ø200 |
|
