Description

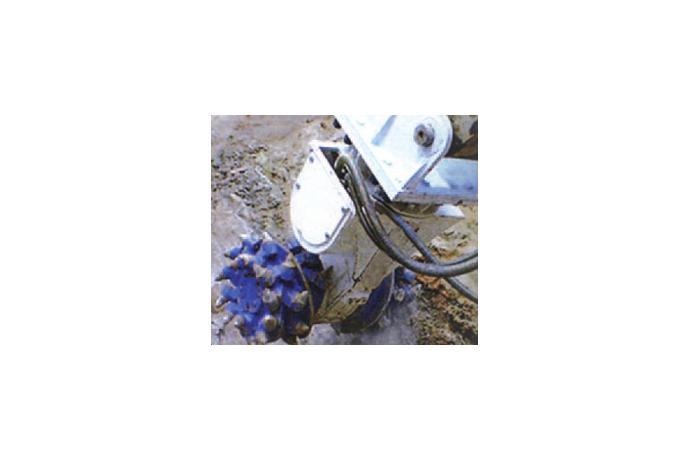

FINE Rotary Cutters Specification
|
Description |
Rocut130 |
Rocut 200 |
Rocut 300 |
Rocut 400 | |
|
Drum Speed |
rpm | 68 | 70 | 60 | 45 |
|
Bit Type |
Point Attack | Point Attact | |||
|
Weight without |
kg | 1,250 | 1,300 | 1,850 | 2,000 |
|
Applicable Mateerial |
kg/Cm2 | 400~600 | 400~700 | 500~800 | 600~900 |
|
Applicable Excavator |
Ton | 10~15 | 15~25 | 25~35 | 30~45 |
|
Unit Cutting Capacity |
m3/H | 7~12 | 12~15 | 13~20 | 23~35 |
| Drum diameter | mm | 510 | 510 | 530 | 530 |
| Cutting Force | kg.f | 3,300 | 3,300 | 4,800 | 6,000 |
| Recommended Oil Valve | kg.f/cm2 | 250 | 250 | 250 | 250 |
| Cutting Width | mm | 1,150 | 1,150 | 1,200 | 1,300 |
Above specifications are Subject to change without prior notice
