Pulverizer
Model Name
PHR Series
Data
-
Manufacturer information
provider logo
FEEL ENGExcavator Attachments Manufacturer, Hydraulic Breaker, Rock Drill and more
Problem with product info?
Update request
Manufacturer
FEEL ENG
Brand
-
SKU
54469
Product Name
Pulverizer
Model Name
PHR Series
Size
-
Weight
-
Product Details

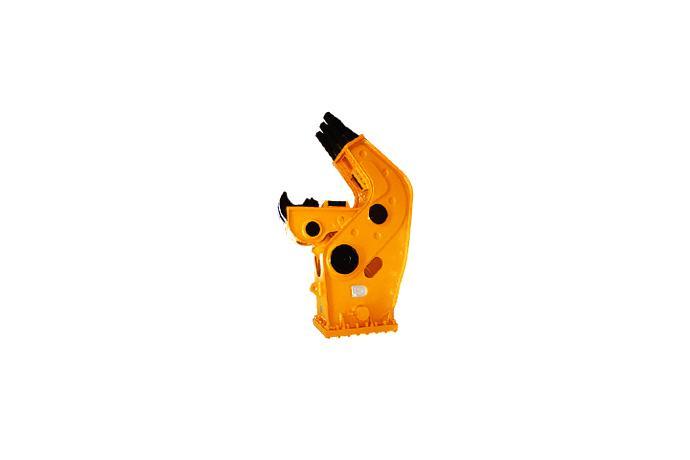

FEEL ENG Pulverizer PHR Series

Specification "PHR" Series (Primary & Secondary Pulverizing)

Description

FINE 90PHR

FINE 120PHR

Operating Weight

kg

1,950

2,750

Operating Pressure

bar

280

280

Crushing Force

ton

118

138

Max. Operating Width

mm

850

995

Cutter Length

mm

180

180

Overall Height

mm

2,407

2,705

Overall Width

mm

1,223

1,411

Suitable Base Machine

ton

18.0~26.0

25.0~35.0





<tab title="Fixed Crusher ("P"Series)">

FEEL ENG Pulverizer PHR Series 1

Specification "P" Series (Primary & Secondary Pulverizing)

Description

FINE 90P

FINE 120P

Operating Weight

kg

1,700

2,300

Operating Pressure

bar

280

280

Crushing Force

ton

118

138

Max. Operating Width

mm

850

985

Cutter Length

mm

180

180

Overall Height

mm

2,300

2,520

Overall Width

mm

1,340

1,600

Suitable Base Machine

ton

18.0~26.0

25.0~35.0

FEEL ENGExcavator Attachments Manufacturer, Hydraulic Breaker, Rock Drill and more
We, Feel Industrial Engineering Co., Ltd. have exported various hydraulic attachments for excavators such as hydraulic breakers, rock drills, and sheet pile drivers to over 40 countries in the world since the establishment in June 2000 with employees who have experience in the field of construction machinery for many years. We have more than 20 patents and are trying to be a company that considers not only quality but also the environment through CE, IS0 9001, and IS014001 certifications. Based on our experience, we promise to make up to our customers through convenient and economical products through advanced technology development and research.
