This product is manufactured by
DOOVAC
Manufacturer information
DOOVAC
Vacuum pump manufacturer, Industrial pump, Medical suction, Tank type vacuum pump and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
DOOVAC
Product Type
Machine
Brand
-
SKU
134387
Product Name

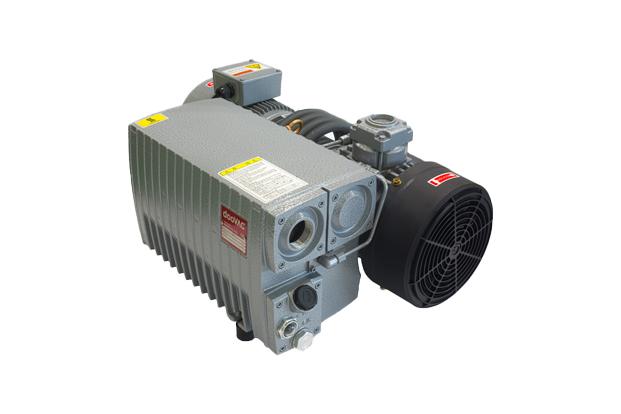

Rotary Vane Vacuum Pumps
Model Name
SVO-060, SVO-100
Size
-
Weight
-
Product Details
| Technical Data | SVO-060 | SVO-100 | ||
|---|---|---|---|---|
| Nominal Displacment | 50Hz | ℓ/min | 50 | 85 |
| Nominal Displacment | 60Hz | ℓ/min | 60 | 100 |
| Ultimate Pressure | - | mbar | 2 | 2 |
| Motor Version-3 | - | V | - | - |
| Motor Version-1 | 50Hz | V | 110/220 | 110/200 |
| Nominal Motor Rating-3 | - | kW | - | - |
| Nominal Motor Rating-1 | - | kW | 0.2 | 0.25 |
| Nominal Motor Speed | 50Hz | min-1 | 1420 | 1420 |
| Nominal Motor Speed | 60Hz | min-1 | 1700 | 1700 |
| Sound Level | - | dB(A) | 50 | 52 |
| Water Vapour Tolerance Max | - | mbar | - | - |
| Water Vapour Capacity | - | ℓ/h | - | - |
| Operating Temperature Ambient | - | °C | 40 | 40 |
| Oil Filling | - | liter | 0.1 | 0.1 |
| Weight Appox | - | kg | 12 | 13 |
Product Dimension
 |
||
| A | Cooling air entry |
PT ¼"
Ø 8 hose nipple |
| B | Cooling air exit | |
| C | Intel flange | |
| D | Exhaust port | |
| E | Oil Filling plug | |
| F | Oil Sight glass | |
| G | Oil drain plug | |
| H | Pump base | |
| Model | a | b | c | d | e | f | g | h | i |
| SVO-060-AC | 323 | 99 | 90 | 176 | 110 | 153 | 105 | 92 | 92 |
| SVO-100-AC | 336 | 112 | 90 | 176 | 110 | 153 | 105 | 92 | 95 |

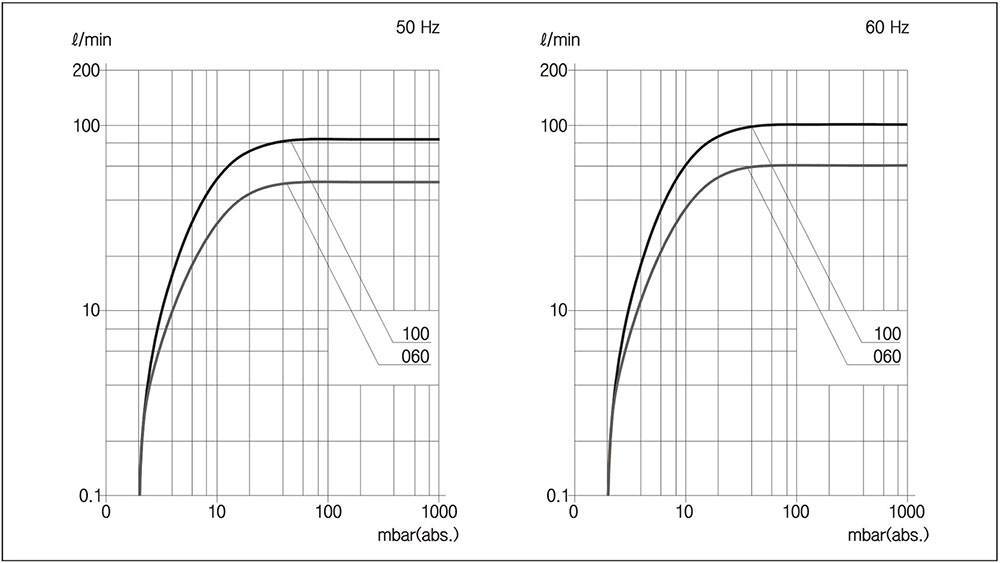

Performance Curve
