This product is manufactured by
DOOVAC
Manufacturer information
DOOVAC
Vacuum pump manufacturer, Industrial pump, Medical suction, Tank type vacuum pump and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
DOOVAC
Product Type
Machine
Brand
-
SKU
134395
Product Name
Liquid Ring Vacuum Pumps
Model Name
DWV-400
Size
-
Weight
-
Product Details
| Technical Data | DWV 400 | ||
|---|---|---|---|
| Nominal Displacment | 50Hz | ℓ/min | 335 |
| Nominal Displacment | 60Hz | ℓ/min | 400 |
| Ultimate Pressure | - | mmHg | 680 |
| Motor Version-3 | - | V | 220/380, 440 |
| Motor Version-1 | - | V | 220 |
| Nominal Motor Rating-3 | - | kW | 0.75 |
| Nominal Motor Rating-1 | - | kW | 0.95 |
| Nominal Motor Speed | 50Hz | min-1 | 2850 |
| Nominal Motor Speed | 60Hz | min-1 | 3430 |
| Sound Level | - | dB(A) | 62 |
| Water Vapour Tolerance Max | - | mbar | - |
| Water Vapour Capacity | - | ℓ/h | - |
| Operating Temperature Ambient | - | °C | 40 |
| Sealing Water | - | ℓ/min | 1.9 |
| Weight Appox | - | kg | 20 |

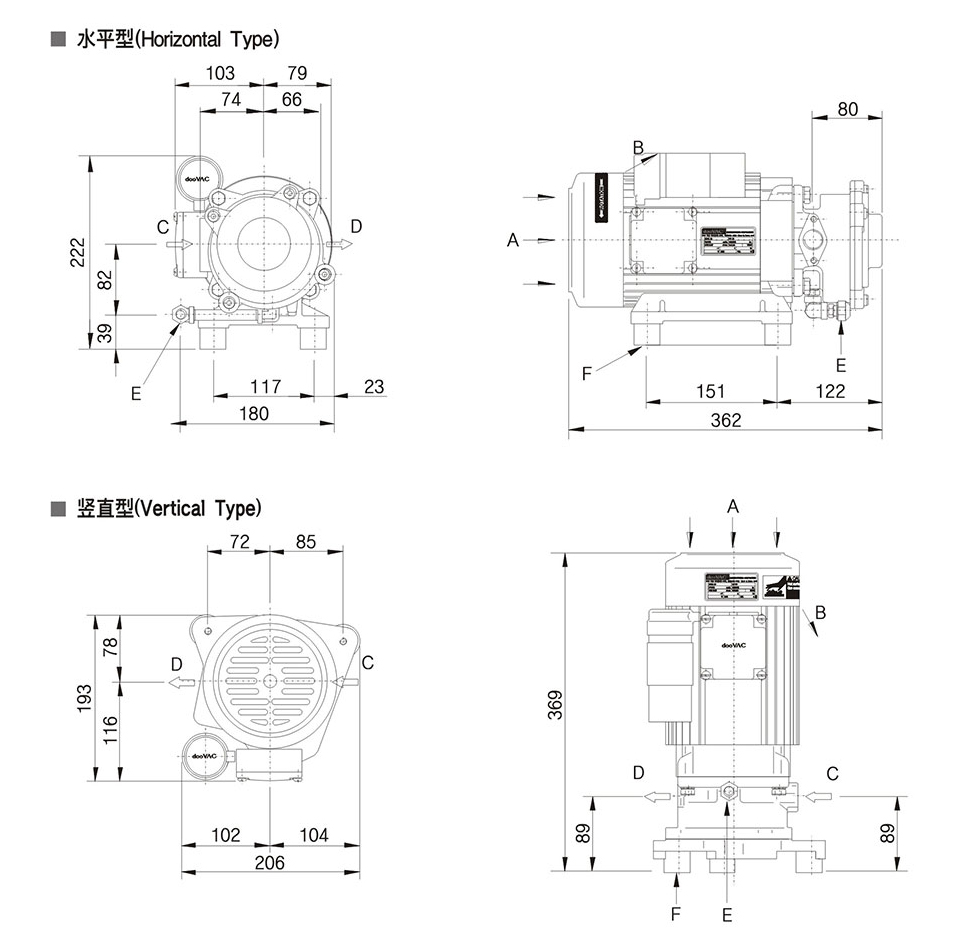

Product Dimension
 |
||
| A | Cooling air entry |
PT ½" PT ½" ⅜" Flare nipple or PT ¼"
3~4-M8 (DP 10) |
| B | Cooling air exit | |
| C | Inlet flange | |
| D | Exhaust port | |
| E | Water supply line | |
| F | Rubber foot | |

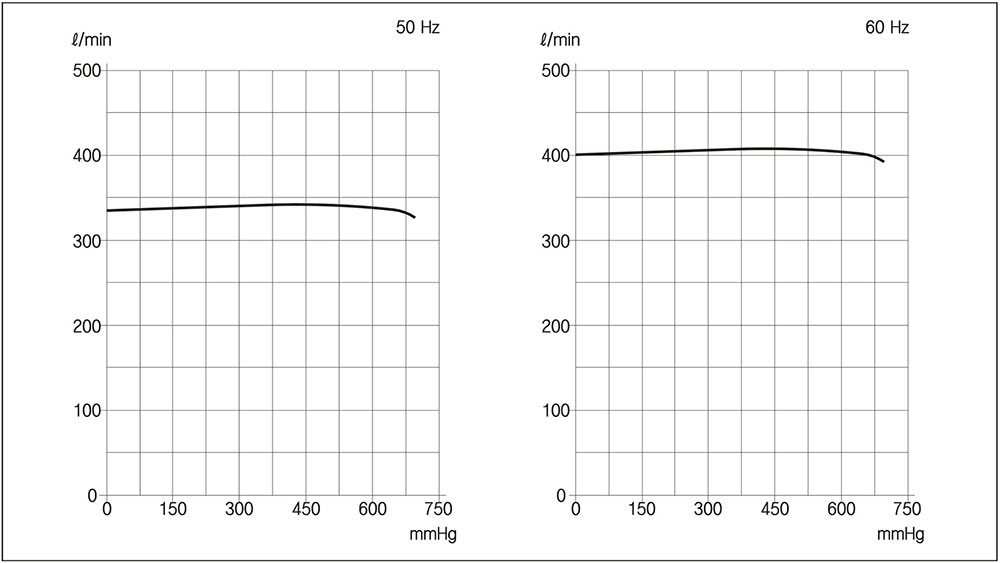

Performance Curve
