Description
| Technical Data | SML 120 | ||
|---|---|---|---|
| Nominal Displacment | 50Hz | ℓ/min | 100 |
| Nominal Displacment | 60Hz | ℓ/min | 120 |
| Ultimate Pressure | - | mbar | 2 |
| Motor Version-3 | 50Hz | V | - |
| Motor Version-1 | 50Hz | V | 110/220 |
| Nominal Motor Rating-3 | - | kW | - |
| Nominal Motor Rating-1 | - | kW | 0.2 |
| Nominal Motor Speed | 50Hz | min-1 | 1420 |
| Nominal Motor Speed | 60Hz | min-1 | 1700 |
| Sound Level | - | dB(A) | 50 |
| Water Vapour Tolerance Max | - | mbar | - |
| Water Vapour Capacity | - | ℓ/h | - |
| Operating Temperature Ambient | - | °C | 40 |
| Oil Filling | - | liter | 0.1 |
| Weight Appox | 50Hz | kg | 12 |
| Weight Appox | 60Hz | kg | 12 |

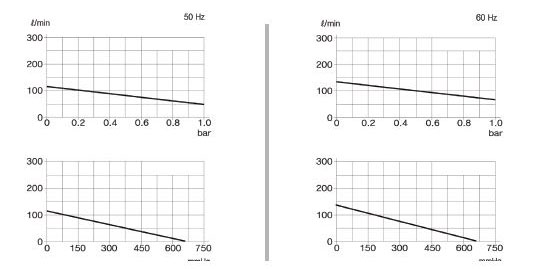

Performance Curve
