Manufacturer
DOOVAC
Product Type
Machine
Brand
-
SKU
134384
Product Name
Rotary Vane Vacuum Pumps
Model Name
MVO-008, MVO-016
Size
-
Weight
-
Product Details
| Technical Data | MVO-008 | MVO-016 | ||
|---|---|---|---|---|
| Nominal Displacment | 50Hz | m3/hr | 8.0 | 16 |
| Nominal Displacment | 60Hz | ℓ/min | 9.6 | 19 |
| Ultimate Pressure | A | mbar | 0.5 | 2 |
| Ultimate Pressure | C | mbar | 20 | 20 |
| Motor Version-3 | 50Hz | V | - | - |
| Motor Version-3 | 60Hz | V | - | - |
| Motor Version-1 | 50Hz | V | 220 | 220 |
| Motor Version-1 | 60Hz | V | 220 | 220 |
| Nominal Motor Rating-3 | - | kW | - | - |
| Nominal Motor Rating-1 | - | kW | 0.42 | 0.55 |
| Nominal Motor Speed | 50Hz | min-1 | 1430 | 3000 |
| Nominal Motor Speed | 60Hz | min-1 | 1720 | 3600 |
| Sound Level | - | dB(A) | 52 | 60 |
| Water Vapour Tolerance Max | - | mbar | - | - |
| Water Vapour Capacity | - | ℓ/h | - | - |
| Operating Temperature Ambient | - | °C | 40 | 40 |
| Oil Filling | - | liter | 0.3 | 0.3 |
| Weight Appox | - | kg | 18 | 18 |
Product Dimension
 |
||
| A | Cooling air entry |
PT ½"
4-M6 (Thru.) |
| B | Cooling air exit | |
| C | Intel flange | |
| D | Exhaust port | |
| E | Oil sight glass | |
| F | Oil drain plug | |
| G | Oil filling plug | |
| H | Pump base | |
| Model | a | b | c | d | e | f | g | h | I |
| MVO-008-BC | 303 | 140 | 90 | 112 | 105 | 160 | 234 | 149 | 63 |
| MVO-016-BC | 303 | 140 | 90 | 112 | 105 | 160 | 234 | 149 | 63 |

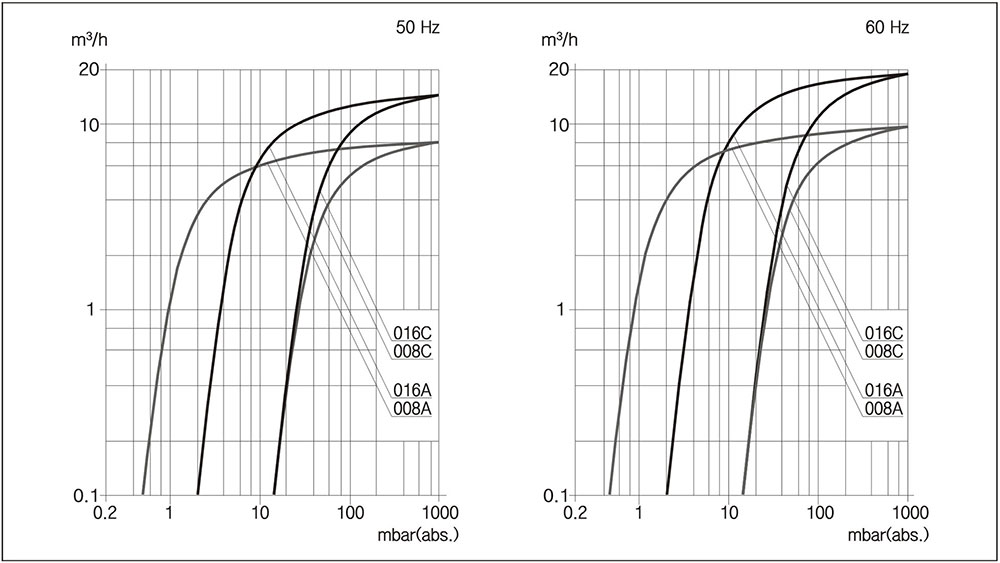

Performance Curve
