Product Name

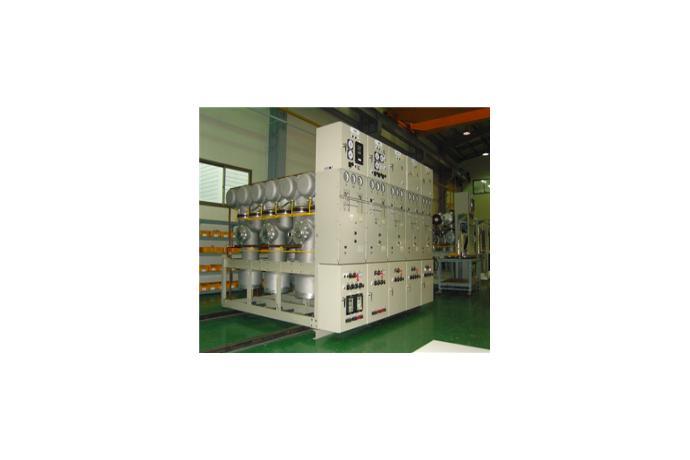

25.8kV Gas Insulated Switchgear
Model Name
-
Size
-
Weight
-
Product Details
Product Specification
|
Name of Product |
25.8kV Gas Insulated Switchgear (GIS) |
|
|
Service Classification |
E1 / C2 / M2 |
E2 / S1 / C2 / M2 |
|
Rated Voltage(kV,rms) |
25.8 |
|
|
Frequency(Hz) |
60 |
|
|
Rated Power Frequency Withstand Voltage / |
70 / 77 |
|
|
Rated Shock Withstand Voltage / |
150 / 165 |
|
|
Rated Current(A,rms) |
600 / 2,000 |
|
|
Rated Short Time Withstand Current(kA,rms) |
25 |
|
|
Rated Gas Pressure(Mpa.G) |
0.05 |
|
|
Application Standard |
ES 6110-0001 |
IEC 62271-200 |
