Product Specification

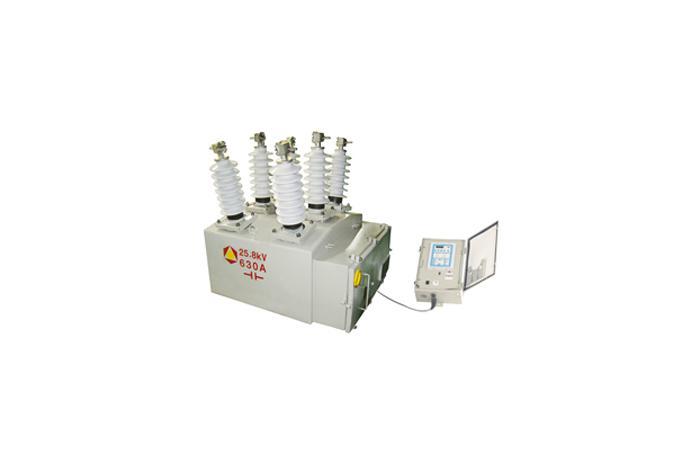

| Name of Product | 25.8kV Recloser for Distribution Automation |
| Standard | DN-GRE |
| Rated Voltage(kV) | 25.8 |
| Rated Current(A) | 630 |
| Power Frequency Withstand Voltage(kV) | 60 |
| Shock Withstand Voltage(kV) | 150 |
| Rated Short Circuit Making Current(kA, rms) | 12.5 |
| Rated Short Circuit Making Current(kA, peak) | 12.5 |
| Minimum Running Current(A) | Phase / 50~630 |
| Ground / 25~315 | |
| Control Method | Magnetic actuator |
| Number of zero-Volt Load Break Switch (times) | 5,000 |
| Weight(kg) | 170 |
| Applied Standard | ANSI C37.60 |
