Product Name Bridge X Series
Model
Series Bridge
Catalog
Product Description

(주)디지털포캐스트 Bridge X Series

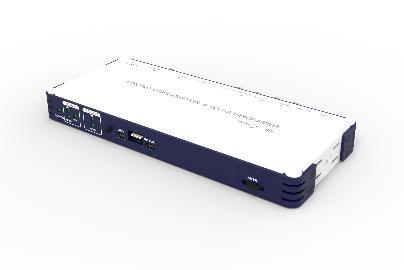

Bridge X ODA is device to be selected output between SDI/HDMI from user. It
provides 6 SDI output and 1 HDMI output.





Key Features

• 1 SDI / 1 HDMI Input
• 6 SDI / 1 HDMI Output
• SDI / HDMI Cross Converter
• Seamless Selector
• User can choose Output from SDI or HDMI Input using Toggle Button




Specifications

• Supports HDMI v1.3
• Supports multi-rate SDI formats
• SMPTE 296M: 720p (60/59.94/50)
• SMPTE-274M,SMPTE-292M: 1080i (60/59.94/50)
• SMPTE-424M: 1080p (60/59.94/50) 3G



Applications

(주)디지털포캐스트 Bridge X Series  1


(주)디지털포캐스트 Bridge X Series  2

Bridge X_HS is a device that convert to SDI signal of SMPTE standards from HDMI signal.
It can support the format of up to 1080p60. In addition, it can insert analog audio into SDI signal (MUX) and extract audio from HDMI signal (DEMUX)





Key Features

• HDMI to SDI converter
• 1 HDMI input (SD/HD/FHD all standard format)
• 1 SDI output (SD/HD/FHD all standard format)
• 1 External stereo analog audio input / output (MUX or DMX)
• Selectable mux audio source between HDMI embedded and analog audio
• DC 5V ~ 17V wide operating power range
• Support rack mount frame (1U max 6 units)




Specifications

• Supports HDMI v1.3
• Supports multi-rate SDI formats
- SMPTE 125M: NTSC (480i 59.94), PAL (576i 50)
- SMPTE 296M: 720p (60/59.94/50)
- SMPTE-274M,SMPTE-292M: 1080i (60/59.94/50), 1080p (30/29.97/25/24/23.98)
- SMPTE-424M: 1080p (60/59.94) 3G


(주)디지털포캐스트 Bridge X Series  3

Bridge X SDI is device to be selected output between SDI/HDMI from user. Also
it has a built-in frame-sync function and audio Mux/DeMux function.





Key Features

• 1 SDI / 1 HDMI Input
• 3 SDI / 1 HDMI Output
• SDI / HDMI Cross Converter
• Seamless Selector
• User can choose Output from SDI or HDMI Input Toggle Button
• User selectable Outpur format
• Analog Audio Mux / DeMux Function
• Frame Synchronizer




Specifications

• Supports HDMI v1.3
• Supports DVI format
• Supports multi-rate SDI formats
• SMPTE 125M: NTSC (480i 59.94), PAL (576i 50)
• SMPTE 296M: 720p (60/59.94/50)
• SMPTE-274M,SMPTE-292M: 1080i (60/59.94/50)
                                            1080p (30/29.97/25/24/23.98)
• SMPTE-424M: 1080p (60/59.94/50) 3G

(주)디지털포캐스트 Bridge X Series  4



Applications

(주)디지털포캐스트 Bridge X Series  5

(주)디지털포캐스트 Bridge X Series  6

Bridge X TS is a device that supports a variety of inputs and outputs. This device can be used in a installation construction, maintenance service of video or audio signal. You can see the signal status to the LCD panel. Even if any one of the input signal, the converted signals are all output. Also this device has the ability to measure the built-in SDI Jitter and Cable length.





Key Features

• Up/Down/Cross/Scan converter
• Multiple standard Video / Audio signal
• (CVBS, AES/EBU, SDI, VGA, COMPONENT, Analog audio, HDMI)
• Analog audio MUX / DEMUX
• User selectable output format
• Test Pattern Generator (Stop screen and Moving Box screen)
• Menu OSD function
• Audio level check (Most 8 channels are monitored)
• Touch Screen LCD Built in For Input signal monitoring (5 Inch 800x480)
• External battery mount (Option)




Specifications

• Supports HDMI v1.3
• Supports VGA, Comp, CVBS format
• Supports multi-rate SDI formats
- SMPTE 125M: NTSC (480i 59.94), PAL (576i 50)
- SMPTE 296M: 720p (60/59.94/50)
- SMPTE-274M: 1080i (60/59.94/50)
- SMPTE-292M: 1080p (30/29.97/25/24/23.98)
- SMPTE-424M: 1080p (60/59.94/50) 3G




What's in the Box

(주)디지털포캐스트 Bridge X Series  7


Applications

(주)디지털포캐스트 Bridge X Series  8

(주)디지털포캐스트 Bridge X Series  9

Bridge X_SH is a device that convert to HDMI signal from an SDI signal of SMPTE standards. The format is supported from 480i to 1080p60. In addition, it can insert analog audio into HDMI signal and extract analog audio from HDMI signal.




Key Features

• SDI to HDMI converter
• Zero delay conversion & timing
• 1 SDI input (SD/HD/FHD all standard format)
• 1 HDMI output (SD/HD/FHD all standard format)
• 1 External stereo analog audio input / output (MUX or DMX)
• Selectable mux audio source between embedded HDMI and analog
• DC 7V ~ 17V wide operating power range
• Support rack mount frame (1U max 6 units)




Specifications

Physical
Dimension (W x H x D) : 70 x 90 x 22 (mm)
Weight : 100g
Power Level : 7V ~ 17  VDC
Power Consumption : 3.5 Watts (Max: 4Watts)
Operating Temperature : -20℃ ~ 70℃
Humidity : 0 to 95% RH, non-condensing
Data Rate : 3G
Signal Level : 800mVp-p +/- 50m

Digital Video Specs.
• Supports HDMI v1.3
• Supports multi-rate SDI formats
- SMPTE 125M: NTSC (480i 59.94), PAL (576i 50)
- SMPTE 296M: 720p (60/59.94/50)
- SMPTE-274M,SMPTE-292M: 1080i (60/59.94/50), 1080p (30/29.97/25/24/23.98)
- SMPTE-424M: 1080p (60/59.94) 3G



(주)디지털포캐스트 Bridge X Series  10

NEO I is the portable monitoring equipment with which SDI(SD/HD/3G) HDMII(SD/HD/Full HD) is supported. Input, output of SDI and HDMI channel consisted of 1 for each. And UP/DOWN/CROSS change is possible. An integrity check to a signal and an audio level checking function in at most 8 channels are offered to user Cross Converter and the Test Pattern Generator function are supported. And The 1080p60 is even supported about setting of the output format(SD/HD/3G) to the signal.





Key Features

• SDI in/out (SD/HD/3G all standard format)
• HDMI in/out (SD/HD/Full HD all standard format)
• Test Pattern Generator (Stop screen and Moving Box screen)
• SDI signal integrity check (Loss, TSR, CRC, Line number)
• HDMI signal integrity check (Loss, Resolution, HDCP)
• Audio level check (At most 8 channels are monitored.)
• Audio monitoring earphone output
• Touch Screen LCD Built in For Input signal monitoring (5 Inch 800x480)
• External Battery(Option)
• DC 7V ~ 17V Operation rangeoutput format(SD/HD/3G) to the signal




Specifications

Digital Video Specs.
• HDMI v1.3 format Support
• Multi-rate SDI format Support
• SD format : 525/19.97(NTSC), 625/25(PAL), 480P, 576P
• HD format : 720P(24/25/30/50/59.94/60), 1080i(50/59.94/60)
              1080p(24/25/30/sf24/50/59.94/60)
LCD Display Specs.
• Size: 5.0 Inch
• Resolution : 800 x 480
• Pixel area : 0.135mm(W) x 0.135mm(H)
• Display area : 108mm(W) x 64.8(H)
Physical
• Size (W x H x D)_138.5 x 87.9 x 22 (mm)
• Weight_325g
• Supply Power_+ 12 VDC
• Power Consumption_9 Watts (Maximum: 10Watts)
• Operation temperature_0℃ ~ 70℃
• Humidity_0% ~ 95% RH, Non-condensing


What's in the Box
(주)디지털포캐스트 Bridge X Series  11


(주)디지털포캐스트 Bridge X Series  12

Bridge X MC converts video transcoder for all analog and digital video/audio signals. It converts any input signals CVBS, AES/EBU, SDI, VGA, COMPONENT, Analog Audio, HDMI to any of those output signals simultaneously. Multi format up/down/cross converting and Audio Mux, DeMux Function.





Key Features

• Up/Down/Cross/Scan converter
• Audio Mux Function
• HDMI in/output
• Audio Mux Function
• Audio DeMux Function
• User selectable output format
• User selectable output ARC
• Multiple standard video/audio signal
 (CVBS, AES/EBU, SDI, VGA, COMPONENT, Analog Audio, HDMI)
• Support remote control(option)




Specifications

Physical
• Dimension (W x H x D) :  144 x 81 x 19.6 (mm)
• Weight :210 g
• Power Level +12 VDC
• Power Consumption : 10 Watts
• Operating Temperature :  -20℃ ~ 70℃
• Humidity : 0 to 95% RH, non-condensing
Digital Video Specs.
• Supports HDMI v1.3 formats
• Supports multi-rate SDI formats
•  NTSC (480i 59.94), PAL (576i 50)720p (60/59.94/50)
   1080i (60/59.94/50) 1080p (30/29.97/25/24/23.98)
   1080p (60/59.94) 3G



Applications

(주)디지털포캐스트 Bridge X Series  13


(주)디지털포캐스트 Bridge X Series  14

Bridge X_S2 converters all HDMI 1.3 signals up to 1080p to the corresponding SD,HD and 3G-SDI formats complied with SMPTE standard with embedded audio in application for broadcast or professional video production.





Key Features

• HDMI or DVI to SDI converter
• PC DVI format support
• High end video scaler Function inside High video processing engine
• Selectable Mux Audio sorce between Embedded HDMI and Analog L/R
• Normal Bypass mode or fixed Scan converter mode for standard
  1080i50/1080i59.94 broadcast format
• Fixed format setting with USB serial(Default : 1080i)
• 1 HDMI input ( SD/HD/3G all standard format )
• 1 DVI input ( PC dvi format support )
• 1 L/R stereo Audio input (stereo audio jack )
• 2 HD-SDI out ( SD/HD/3G all standard format )
• DC 7V ~ 24V wide operating range


Specifications

Physical
• Dimension (W x H x D) :  105 x 94 x 25 (mm)
• Weight : 165 g
• Power Level : 12 VDC
• Power Consumption : 5.28Watts (Max :  6Watts)
• Operating Temperatue :  -20℃ ~ 70℃
• Humidity : 0 to 95% RH, non-condensing
Digital Video Specs.
• Supports HDMI v1.3
• Supports DVI format
• Supports multi-rate SDI formats
• SMPTE 125M: NTSC (480i 59.94), PAL (576i 50)
• SMPTE 296M: 720p (60/59.94/50)
• SMPTE-274M,SMPTE-292M: 1080i (60/59.94/50)  1080p (30/29.97/25/24/23.98)
• SMPTE-424M: 1080p (60/59.94/50) 3G



Applications

(주)디지털포캐스트 Bridge X Series  15
