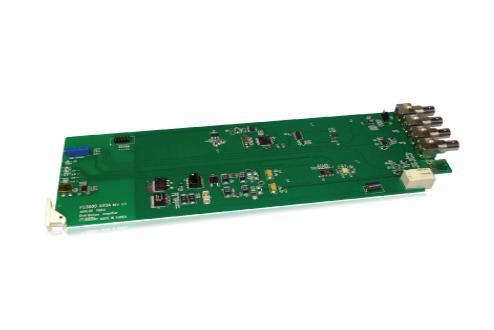

HDLive3000 AVDA (Composite Analog Video Distribution Amplifier) enables to distribute the NTSC/PAL Composite Analog signal or Black Burst, Tri-level Sync into the 4(single slot) or 9(double slot) of Composite analog signal. As not equipped with Equalizing circuit, HDLive3000 AVDA is mainly used for the short-distance distribution of BB Sync or Tri-level Sync within the studio.
Key Features
• NTSC/PAL Composite Analog Video Input
• Up to 4 Composite analog outputs(single slot)
• Up to 9 Composite analog outputs(double slot)
• Input Present detect
• Non-equalizing circuit
• Analog outputs gain control
Composite Analog Video Input
Input Number_1
Input Standard_NTSC/PAL Composite Analog
Black Burst, Tri-level sync
Connector_BNC 75Ω Impedance
Signal level_800mVp-p ± 10%
Composite Analog Video Outputs
Output Number_4(single slot), 9(double slot)
Output Standard_NTSC/PAL Composite Analog,
Black Burst, Tri-level sync
Connector_BNC 75Ω Impedance
Signal level_800mV ± 10%
Electrical
Voltage_+24V
Power Dissipation_< 3W
Temperature_0 ~ 40 ˚C
Physical
HDLIVE3000 frame mounting
Number of slot 1(HDLIVE3000 AVDA)
2(HDLIVE3000 AVDA-D)
Ordering Information
HDLIVE3000 AVDA_Composite DA with 4 outputs(single slot)
HDLIVE3000 AVDA-D_Composite DA with 9 outputs(double slot)
HDLive3000 SVDA-8(ASI & SD SDI Distribution Amplifier) complies with 270Mbps DVB-ASI signal or SMPTE259M-C(270Mbps) Video Signal Standard. Through Equalizing and Re-clocking circuits, HDLive3000 SVDA-8 amplifies and distributes an input ASI or SDI signal for an input of other equipment.
Key Features
• Supports DVB-ASI and SMPTE 259M-C(270Mbps)
• Up to 8 Re-clocked outputs
• Input signal and no input signal present
• Auto equalizing(up to 250m Belden 1694A)
• Outport1 master Bypass Relay out (1out)
• Support NMS System
ASI/SD Input
Input Number_1
Input Standard_DVB-ASI, SMPTE 259M-C : 270M
Connector_BNC 75Ω Impedance
Return Loss_> 15dB to clock freq.
Cable Length_250m Belden 8281 @ 270Mbps
Signal level_800mVp-p ± 10%
ASI/SD Outputs
Output Number_8
Output Standard_DVB-ASI, SMPTE 259M-C : 270M
Connector_BNC 75Ω Impedance
Signal level_800mV ± 10%
Rise & fall time_400~800ps
Overshoot_< 10% of amplitude
Jitter_< 0.2 UI
Electrical
Voltage_+24V
Power Dissipation_< 3W
Temperature_0 ~ 40 ˚C
Physical
HDLIVE3000 frame mounting
Number of slot 2
Ordering Information
HDLIVE3000 SVDA-8_ASI/SD VDA
HDLive3000 HVDA-10 (Multi-Rate HD/SD Serial Digital Video Distribution Amplifier with Re-clocking) enables to produce the 10 Serial Digital Video signal outputs from an input 1 Serial Digital Signal in compliance with SMPTE 292M, SMPTE 259M, SMPTE 344M.
As equipped with Equalizing & Re-clocking circuits, HDLive3000 HVDA-10 is available to be used for a comparably long distance (normally, within 100m) of Serial Digital Signal distribution.
Key Features
• Supports SMPTE SMPTE 424M, 292M and SMPTE 259M-C
• Supports DVB-ASI(OUT1,3,5 only)
• Up to 10 Re-clocked outputs
• Auto detect frequency rate of Input video signal
• Input signal and no input signal present Auto equalizing
(up to 100m at HD, 250m at SD, Belden 1694A)
SDI Input
Input Number_1
Input Standard_SMPTE 424M : 2.97G, SMPTE 292M : 1.485G, 1.485/1.001Gbps, SMPTE 259M-C : 270M
Connector_BNC 75Ω Impedance
Return Loss_> 15dB to clock freq.
Cable Length_250m Belden 8281 @ 270Mbps, 100m Belden 1694 @ 1.485Gbps
Signal level_800mVp-p ± 10%
SDI Outputs
Output Number_10
Output Standard_SMPTE 424M : 2.97G, SMPTE 292M : 1.485G, 1.485/1.001Gbps, SMPTE 259M-C : 270M
Connector_BNC 75Ω Impedance
Signal level_800mV ± 10%
Rise & fall time_400~800ps(SD), < 270ps(HD)
Overshoot_< 10% of amplitude
Jitter_<0.2 UI(SD), <1 UI(HD)
Electrical
Voltage_+24V
Power Dissipation_< 3W
Temperature_0 ~ 40 ˚C
Physical
HDLIVE3000 frame mounting
Number of slot 2
Ordering Information
HDLIVE3000 HVDA_HD/SD VDA with Output 4
HDLIVE3000 HVDA-6_HD/SD VDA with Output 6
HDLIVE3000 HVDA-10_HD/SD VDA with Output 10
HDLive3000 HVDA-6 (Multi-Rate HD/SD Serial Digital Video Distribution Amplifier with Re-clocking) enables to distribute Into the 6 Serial Digital Video signal outputs from a 1 Serial Digital signal in compliance with SMPTE 292M, SMPTE 259M, SMPTE 344M. As equipped with Equalizing & Re-clocking circuits, HDLive3000 HVDA-6 is available to be used for a comparably long distance (normally, within 100m) of Serial Digital Signal distribution.
Key Features
• Supports SMPTE 424M, SMPTE 292M and SMPTE 259M-C
• Supports DVB-ASI(OUT1,3,5 only)
• Up to 6 Re-clocked outputs
• Auto detect frequency rate of Input video signal
• Input signal and no input signal presentAuto equalizing
(up to 100m at HD, 250m at SD, Belden 1694A)
SDI Input
Input Number_1
Input Standard_SMPTE 424M : 2.97G, SMPTE 292M : 1.485G,1.485/1.001Gbps, SMPTE 259M-C : 270M
Connector_BNC 75Ω Impedance
Return Loss_> 15dB to clock freq.
Cable Length_250m Belden 8281@ 270Mbps, 100m Belden 1694@ 1.485Gbps
Signal level_800mVp-p ± 10%
SDI Outputs
Output Number_6
Output Standard_SMPTE 424M : 2.97G, SMPTE 292M : 1.485G, 1.485/1.001Gbps
Connector_SMPTE 259M-C : 270M
Signal level_BNC 75Ω Impedance
Rise & fall time_800mV ± 10%, 400~800ps(SD),<270ps(HD)
Overshoot_< 10% of amplitude
Jitter_<0.2 UI (SD), <1UI (HD)
Electrical
Voltage_+24V
Power Dissipation_< 3W
Temperature_0 ~ 40 ˚C
Physical
HDLIVE3000 frame mounting
Number of slot 1
Ordering Information
HDLIVE3000 HVDA_HD/SD VDA with Output 4
HDLIVE3000 HVDA-6_HD/SD VDA with Output 6
HDLIVE3000 HVDA-10_HD/SD VDA with Output 10
