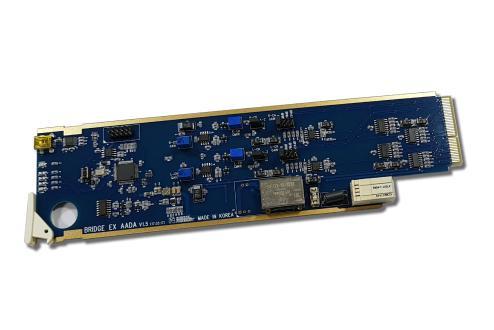

BRIDGE EX_AADA(Stereo Analog Audio Distribution Amplifier)uses a Stereo Analog Audio signal in an input for the purpose of distribution of four Stereo Analog Audio output signals.
Key Features
• Balanced Analog audio input signal type
• 1 stereo input
• Up to 4 stereo output
• 600Ω or 30KΩ impedance
• Maximum level input is +28dBu
• Gain range of -6 to +24dB
Analog Audio Input
Numbers_Stereo 1(Right, Left)
Connector _Terminal block
Impedance_>22KΩ balanced
Sample rates_32kHz, 44.1kHz, 48kHz, 96kHz
Common Mode Rejection_>80dB at 50/60Hz. 45dB to 20kHz
Analog Audio Output
Numbers_Stereo 4(Right, Left)
Connector _Terminal block
Impedance_>22KΩ balanced
Sample rates_32kHz, 44.1kHz, 48kHz, 96kHz
Common Mode Rejection_>80dB at 50/60Hz. 45dB to 20kHz
Electrical
Voltage_+12V DC
Power Dissipation_< 7W
Temperature_0 ~ 40 ˚C
Physical
BRIDGE EX frame mounting
Number of slot_2
Ordering Information
BRIDGE EX AADA
What's in the Box
Bridge EX_SH is a device that will convert an SDI signal of SMPTE standardsthe to HDMI signal.
It support the format of up to 1080p60. In addition, it is also support fixing the output in a specific format.
Key Features
• SDI to HDMI converter
• Normal Bypass mode or fixed format out mode
• 1 HD/SDI input ( SD/HD/3G all standard format )
• 1 HD/SDI input Re-clocking out
• 1 HDMI out ( SD/HD/3G all standard format )
SDI In/ Output
Input Numbers_1
Output Numbers_1
Standards_SMPTE 125/274/296M/425M
Formats_1080i(50/59/60), 1080p(50/59/60)
Signal level_800mV ± 10%
Return Loss_> 15dB to clock frequency
Connector_75Ω BNC
HDMI Output
Output Numbers_1
Formats_525i/625i, 576p/480p, 720p(50/59/60), 1080i(50/59/60),
1080p(24/25/29/30/50/59/60)
Connector_HDMI
Electrical
Voltage_+12V DC
Power Dissipation_< 7W
Temperature_0 ~ 40 ˚C
Physical
BRIDGE EX frame mounting
Number of slot_2
Ordering Information
BRIDGE EX SH
What's in the Box
HVDA The (Multi-Rate 3G/ HD / SD Serial Digital Video Distribution Amplifier with Reclocking), output the HD / SD SDI signal of eight from the HD / SD SDI input signal of one that complies with SMPTE 125M, SMPTE 296M, SMPTE 274M, SMPTE 425M. HVDA has a built-in circuit Reclocking and Equalizing circuit, it can be used in long distance dispensing.
Key Features
• Support SMPTE 125M, SMPTE 296M, SMPTE 274M, SMPTE 425M
• Reclock SDI output
• Multi-Rate SDI (143M, 177M, 270M, 340M, 540M, 1.485G, 1.485/1.001G)
• HD/SD-SDI 1 in x 8 out
• Auto equalizing
• (HD grade : compensate for up to 100m, SD : up to 300m of Belden 1694 Cable)
SDI Input
Input Number_1
Input Standard_SMPTE 125M : 525i/625i
HD SMPTE 274M : 1080i(50/59/60), 1080p(23/24/25/29/30)
HD SMPTE 425M : 1080p(50/59/60)
HD SMPTE 296M : 720p(50/59/60)
Connector_BNC 75Ω Impedance
Return Loss._> 15dB to clock freq.
Cable Length_250m Belden 8281@ 270Mbps, 100m Belden 1694@ 1.485Gbps
Signal level_800mVp-p ± 10%
SDI Outputs
Output Number_8
Output Standard_SMPTE 125M : 525i/625i
HD SMPTE 274M : 1080i(50/59/60), 1080p(23/24/25/29/30)
HD SMPTE 425M : 1080p(50/59/60)
HD SMPTE 296M : 720p(50/59/60
Connector_BNC 75Ω Impedance
Signal level_800mV ± 10%
Rise & fall time_400~800ps(SD), < 270ps(HD)
Overshoot_< 10% of amplitud
Jitter_<1 UI
Physical
BRIDGE EX frame mounting
Number of slot_2
Electrical
Voltage_+12V DC
Power Dissipation_< 3W
Temperature_0 ~ 40 ˚C
Ordering Information
BRIDGE EX HVDA_HD/SD VDA with Output 1x8
Diagram
Bridge EX MULTI-B outputs to CORSS CONVERTING or UP / DOWN the 3G/HD/SD SDI input signal. It also has a built-in function Audio MUX, of DMX.In addition, it is also possible to support CVBS outputs for monitoring, fixing the output in a specific format.
Key Features
• HD/SDI to HD/SDI Up/Down/Cross/scan converter
• Audio Mux Function
• Audio DeMux Function
• User selectable output format using DIP S/W
• SMPTE 125M, SMPTE 296M, SMPTE-274M,SMPTE-292M, SMPTE-424M
• 1 CVBS for Monitoring
• HD/SDI to HD/SDI Up/Down/Cross/scan converter
• Audio Mux Function
• Audio DeMux Function
• User selectable output format using DIP S/W
• SMPTE 125M, SMPTE 296M, SMPTE-274M,SMPTE-292M, SMPTE-424M
• 1 CVBS for Monitoring
BRIDGE EX HH This is a device that will be converted to standard SMPTE SDI signal receives an input of the HDMI signal. It supports formats up to 1080P60, it can export the SDI two output signal of the one HDMI inputs.In addition, it is also possible to fix the output in a specific format. (Scaler built-in)
Key Features
• HDMI to SDI converter
• 1 HDMI input
• 2 HD/SD SDI output
• SCAN converter
• Improved Output Jitter
• Input state LED expression
• Dipswitch configuration
HDMI Input
Input Numbers_1
Formats_525i/625i , 576p/480p, 720p(50/59/60), 1080i(50/59/60), 1080p(24/25/29/30/50/59/60)
Connector_HDMI
SDI Outputs
Output Numbers_2
Output Standards_SMPTE 125/274/296M/425M
Formats_1080i(50/59/60), 1080p(50/59/60)
Signal level_800mV ± 10%
Return Loss_> 15dB to clock frequency
Connector_75Ω BNC
Electrical
Voltage_+12V DC
Power Dissipation_< 7W
Temperature_0 ~ 40 ˚C
Physical
BRIDGE EX frame mounting
Number of slot_2
Ordering Information
BRIDGE EX HH
Satisfied the signal standard SMPTE276M, AES-3id of (1995), AES / EBU Digital Audio Distribution Amplifier is me amplified distributed to the AES / EBU signal of eight output receives the AES / EBU signal of 110Ω or 75Ω. BRIDGE EX DADA has a built-in circuit Reclocking and Equalizing circuit, (selected according to the Rear B / D signal Impedence is) can be installed in the input distance 600m (75Ω), 300m of (110Ω) or less.
Key Features
• Supports SMPTE276M, AES3id(1995)
• Up to 8 Reclocked outputs
• 75Ω or 110Ω In/Output
• Input Present and sample rate auto detect
• Automatic equalization up to 600m(75Ω), 300m(110Ω)
• Aeecpts 32kHz, 44.1kHz, 48kHz sampling rate
• Supports Auto/Manual cable equalization
AES/EBU Digital Audio Input
Input Number_1
Input Standard_SMPTE276M, AES-3id(1995)
Coupling_Transformer coupled
Connector_75Ω BNC, 110Ω terminal block
Signal level_1Vp-p(75Ω), 2~7Vp-p(110Ω)
Input Return Loss_>25dB at 0.1 to 6MHz(75Ω)
Sample Rate_32kHz, 44.1kHz, 48kHz
AES/EBU Digital Audio Output
Output Number_8
Output Standard_SMPTE276M, AES-3id(1995)
Coupling_Transformer coupled(110Ω)
Connector_75Ω BNC, 110Ω terminal blocK
Signal level_1Vp-p(75Ω), 2~7Vp-p(110Ω)l
Jitter_< 5ns
Rise & Fall Time_30-40ns(75Ω), 5-30ns(110Ω)
Sample Rate_32kHz, 44.1kHz, 48kHz
Electrical
Voltage_+12V DC
Power Dissipation_< 3W
Temperature_0 ~ 40 ˚C
Physical
BRIDGE EX frame mounting
Number of slot_ 2
Ordering Information
BRIDGE EX DADA-U_75Ω Impedence DA
BRIDGE EX DADA-B_110Ω Impedence DA
Composite Analog Video Distribution Amplifier distributes Composite analog signal receiving input Black Burst or NTSC / PAL Composite Analog signal, of Tri-level Sync signal. One input /nine output The BRIDGE EX AVDA, because it does not contain any input Equalizing circuit, and distributes the signal nearby, you can use for the purpose of distribution of Tri-level Sync or BB Sync in the studio mainly.
Key Features
• NTSC/PAL Composite Analog Video Input
• Up to 9 Composite analog outputs
• Input Present detect
• Non-equalizing circuit
• Analog outputs gain control
Composite Analog Video Input
Input Number_1
Input Standard_NTSC/PAL Composite Analog, Black Burst, Tri-level sync
Connector_BNC 75Ω Impedance
Signal level_800mVp-p ± 10%
Composite Analog Video Outputs
Output Number_9
Output Standard_NTSC/PAL Composite Analog, Black Burst, Tri-level sync
Connector_BNC 75Ω Impedance
Signal level_800mV ± 10%
Electrical
Voltage_ +12V DC
Power Dissipation_< 3W
Temperature_0 ~ 40 C
Physical
BRIDGE EX frame mounting
Number of slot_ 2
Ordering Information
BRIDGE EX AVDA_Composite DA with 9 outputs
Diagram
BRIDGE EX AH is a device that will change the SDI signal of HD class by receiving the Composite signal. The output in UP CONVERTING to HD / SD SDI signal by the MUX signal Analog audio L/R and analog signal input, This is the one Analog VIDEO OUT and two HD / SD SDI VIDEO OUT.
Key Features
• NTSC/PAL Analog to HD/SD SDI UP Conversion
• Auto detect NTSC/PAL
• Dipswitch Configuration
• Input state LED expression
• 10 bits A/D quantization
Composite Analog Input
Input Number_1
Input Standard_ NTSC/PAL
Connector_BNC 75Ω Impedance
Signal level_1Vp-p ± 10%
SDI Outputs
Output Numbers_ 2
Output Standards_SMPTE 292M : 1.485G, SMPTE259M-C
Output Formats_1080i/59.94,525i/625i
Connector_BNC 75Ω Impedance
Signal level_800mV ± 10%
Rise & fall time_< 270ps(HD), 400-800ps(SD)
Overshoot_< 10% of amplitude
Jitter_1UI(HD), <0.2 UI(SD)
Composite Analog Outputs
Output Numbers_1
Output Standards_NTSC/PAL
Connector_BNC 75Ω Impedance
Signal level_1Vp-p ± 10%
Analog audio Input
Input Number_Stereo
Input Standard_Analog Audio
Connector_RCA
Electrical
Voltage_+12V DC
Power Dissipation_< 7W
Temperature_0 ~ 40 ˚C
Physical
BRIDGE EX frame mounting
Number of slot 2
Ordering Information
BRIDGE EX AH_NTSC/PAL to SDI Up Converter
Diagram
BRIDGE2000 EX is a frame that is designed to be used for various purposes in the Processing module form BRIDGE Converter Series 3G , HDTV, SDTV, such as Analog Video and Audio splitter. It consists of slot total of 10, to support the Network port. Also, 200W Power is can be installed in a dual power.
Key Features
• 2RU , 19 standard Rack size
• The capacity of the modules of the single slot of 10 sheets
• NETWORK support
• Replacing the Rear connector of each module is easy
• 2 pieces attached 200W power supply of sufficient capacity to accommodate 10 modules
• removable module features Plug In method
Electrical
Voltage_95~240V AC 50/60Hz
Maximum Power Dissipation_200W
Fuse_250V / 5A
Power Supply_Redundant, Separate AC inlets,
Forced Air cooling by FAN,
Over Voltage Protection
Over Current Protection
Over Temperature Protection
Power Fact Control
Physical
Temperature_0~40 ℃
Size_440 x 302 x 88 (mm)
Weight_5kg
Module Capacity_10 single slot module
Power Supply_Up to 2
