DAEJIN BLOWER

DAEJIN BLOWER

Plate Type

Model

Series

Impeller


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

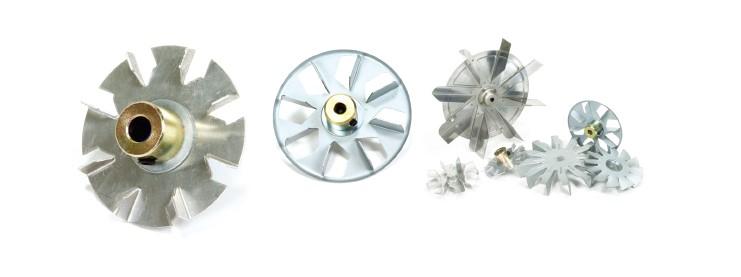

IMPELLER Plate Type Impeller


Characteristics

With radial wings, the product is either flat or leans forward. The radial form is easy to clean, thus fit for dusty locations, but is not as good as other types of blowers i effciency or noise



Hub and Material

Normally for the materials of the boss and the product, AI, GI, and EGI are used, and customization is available to the specifications desired by a customer.



Applications

For cooling TR motor, cooling directly driven motor, and other wind blower motors

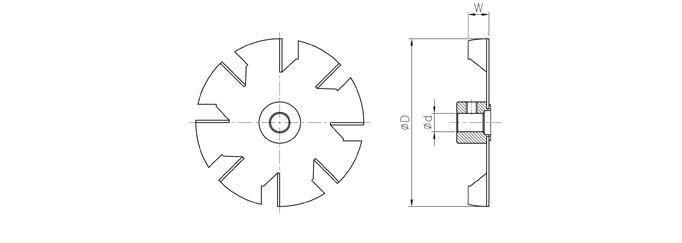

Outward Drawing

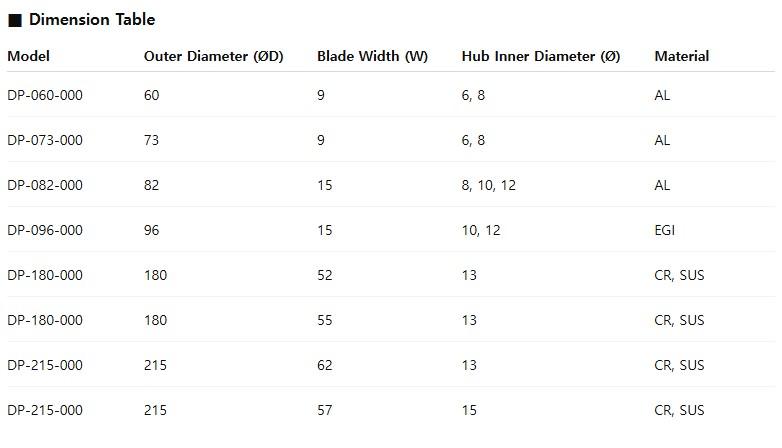

Dimension

Product Name Material Diameter (ØD) Wheel width (W) Boss inside diameter (Ø)
DP-060-000 AL 60 9 6, 8
DP-073-000 AL 73 9 6, 8
DP-082-000 AL 82 15 8, 10, 12
DP-096-000 EGI 96 15 12
DP-180-000 CR, SUS 180 52 13
DP-180-000 CR, SUS 180 55 13
DP-215-000 CR, SUS 215 62 13
DP-215-000 CR, SUS 215 57 13
