DAEJIN BLOWER

DAEJIN BLOWER

Turbo-Blow Type

Model

Series

Impeller


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

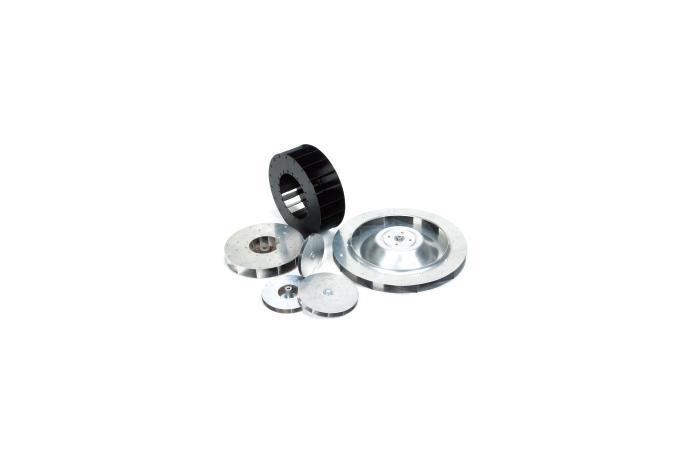

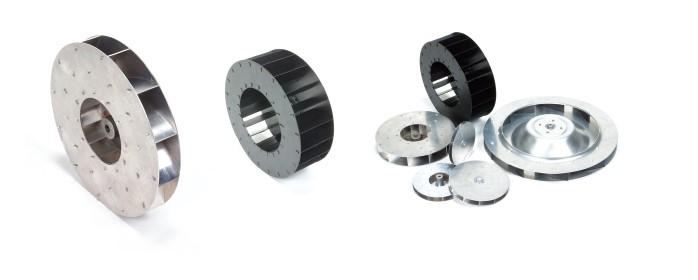

IMPELLER Turbo-Blow Type Impeller





Characteristics

With a structure that, while strong and large, is hydrodynamically excellent, the product can perform the constant-speed operation at large air volume and high speed. Since static pressure fluctuates a lot due to changes in air volume, multi-stage connection creates boosting effect, which brings a constant pressure.



Hub and Material

Normally for the materials of the boss and the product, AI, GI, and EGI are used, and customization is available to the specifications desired by a customer



Applications

For the aeration of a boiler, at a steel mill, for blowing for gas delivery in chemical plants, for various dust-collection devices, for cleanroom equipment, and other industrial wind blowers.

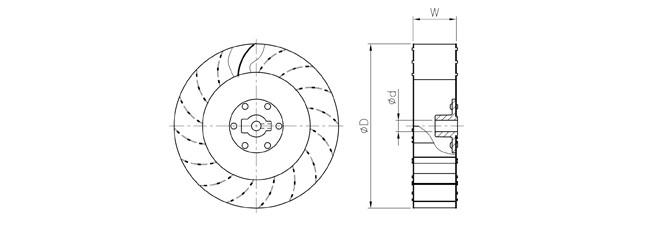

Outward Drawing

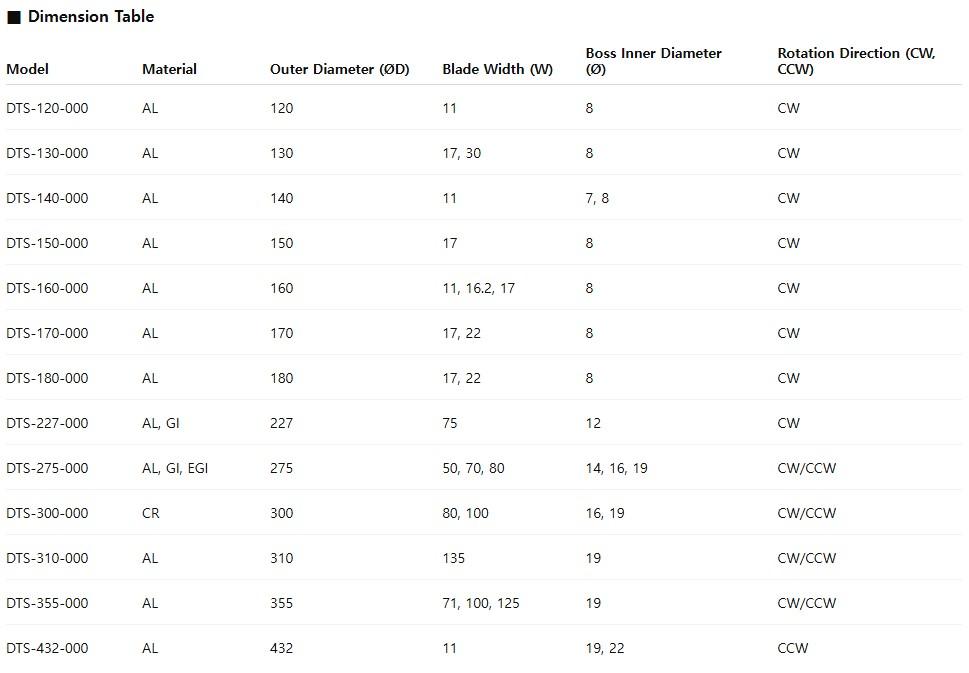

Dimension

Product Name Material Diameter (ØD) Wheel width (W) Base inside Diameter (Ø) The direction of rotation
DTS-120-000 AL 120 11 8 CW
DTS-130-000 AL 130 17,30 8 CW
DTS-140-000 AL 140 11 7, 8 CW
DTS-150-000 AL 150 17 8 CW
DTS-160-000 AL 160 11, 16.2, 17 8 CW
DTS-170-000 AL 170 17, 22 8 CW
DTS-180-000 AL 180 17, 22 8 CW
DTS-227-000 AL, GI 227 75 12 CW
DTS-275-000 AL, GI, EGI 275 50, 70, 80 14, 16, 19 CW/CCW
DTS-300-000 CR 300 80, 100 16, 19 CW/CCW
DTS-390-000 AL 310 135 14 CW/CCW
DTS-390-000 AL 390 11, 17, 22 19, 22 CCW
DTS-432-000 AL 432 11 19, 22 CCW
