DAEHWA ENGINEERING

DAEHWA ENGINEERING

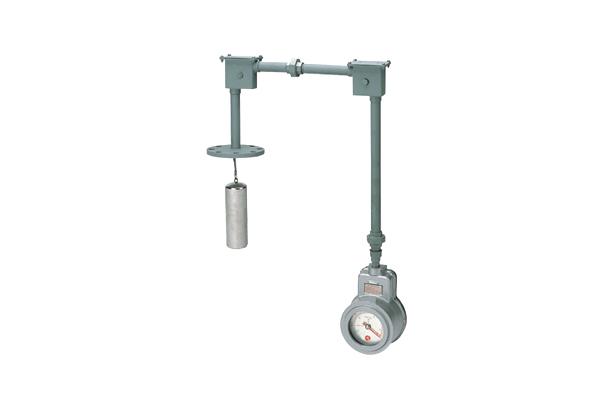

Dial Type Float Level Gauge

Model

Series

Dial Type Float Level Gauge


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.


Description

Operating principle
Dial type float level gauge is consist of float, measuring wire and indicating unit. The measuring wire connected to the float on a liquid level is directly lead into the indicator body and wound on wire drum. The rotation of the wire drum is transmitted through gear transmission to the scale dial indicator where pointer is turned on dial scale to indicate the level. The wire drum is connected with constant drum which serves to wide excessive length of the wire caused by level variation, thus the wire tension is always kept constant.


Application
Dial type float level gauge is widely used for H.F.O, D.O, L.O sewage tanks and water tanks.


Description of model


Description of model

ModelMounting typeMeasuring
range
Specific
Gravity
AccuracyWorking conditionMaterialApplication
Temp.Press.G/G headtapeFloat
DDLG-TTop
(STD.)
0~6m0.7~1.5±15m/m150°C0.2㎏/㎠ACSUS304SUS304Oil,Water
DDLG-TOTop
(Oil Filling)
0~6m0.7~1.5±15m/m150°C0.2㎏/㎠ACSUS304SUS304Sewage
DDLG-SSide
(STD.)
0~6m0.7~1.5±15m/m150°C0.2㎏/㎠ACSUS304SUS304Oil,Water
DDLG-SOTop
(Oil Filling)
0~6m0.7~1.5±15m/m150°C0.2㎏/㎠ACSUS304SUS304

Sewage




DDLG - S


DDLG - SO



DDLG - T


DDLG - TO
