Description
Description

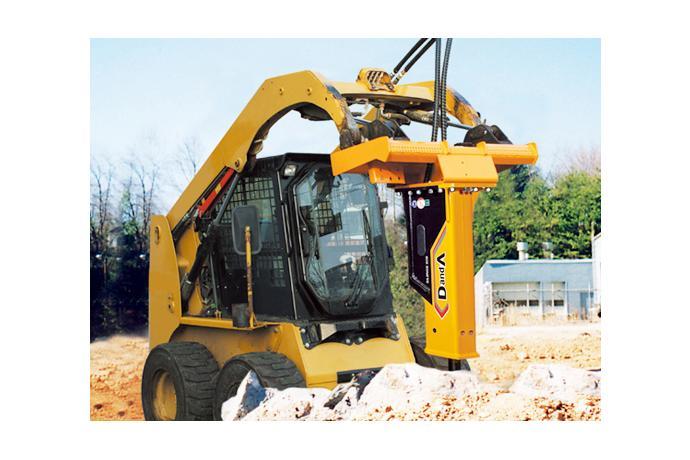

D&A 17S, 40S, 60S, 70S are used for skid loader.
Spectification
| ITEMS / MODEL | D&A 17S | D&A 40S | D&A 60S | D&A 70S | |
| Operation Weight | kg(lbs) | 254 (560) | 336 (741) | 480 (1,058) | 526 (1,160) |
| Number of Blow (Long stroke) | bpm | 600~1,500 | 380~1,000 | 380~1,100 | 400~800 |
| Required Oil Flow | lpm(gpm) | 23~70(6.08~18.49) | 35~70(9.25~18.49) | 50~125(13.21~33.02) | 70~140(18.49~36.98) |
| Operating Pressure | kg/㎠(psi) | 100~190(1,422~2,702) | 110~190(1,565~2,702) | 120~190(1,707~2,702) | 140~190(1,991~2,702) |
| Tool Diameter | mm(inch) | 57 (2.24) | 70 (2.76) | 75 (2.95) | 80 (3.15) |
| Suitable Excavator | ton(lbs) | 1.5~4.0(3,307~8,818) | 3.0~6.5(6,614~14,330) | 4.5~8.0(9,921~17,637) | 4.5~8.0(9,921~17,637) |
Remark
Above specifications are subject to change without notice.
