Description
Description

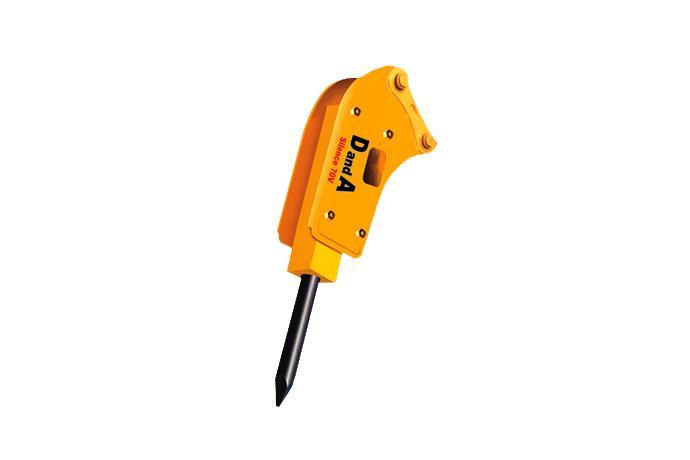

D&A 40V, 60V, 70V, 80V are used for backhoe loader.
Spectification
| ITEMS / MODEL | D&A 40V | D&A 60V | D&A 70V | D&A 80V | |
| Operation Weight | kg(lbs) | 260(572) | 330(728) | 480(1,058) | 540(1,190) |
| Number of Blow (Long stroke) |
bpm | 550~1,300 | 380~1,100 | 400~800 | 350~700 |
| Required Oil Flow | lpm(gpm) | 35~70 (9.25~18.49) |
40~110 (10.57~29.06) |
45~100 (11.89~26.42) |
50~110 (13.21~29.06) |
| Operating Pressure | kg/㎠(psi) | 110~165 (1,595~2,347) |
120~165 (1,707~2,347) |
140~170 (1,991~2,418) |
140~170 (1,991~2,418) |
| Tool Diameter | mm(inch) | 70 (2.76) | 75 (2.95) | 80 (3.15) | 90 (3.54) |
| Suitable Excavator | ton(lbs) | 3.0~6.5 (6,614~14,330) |
4.5~8.0 (9,921~17,637) |
4.5~8.0 (9,921~17,637) |
6.0~10.0 (13,228~22,046) |
Remark
Above specifications are subject to change without notice.
