ACCU-ONE
ACCU-ONE
Description

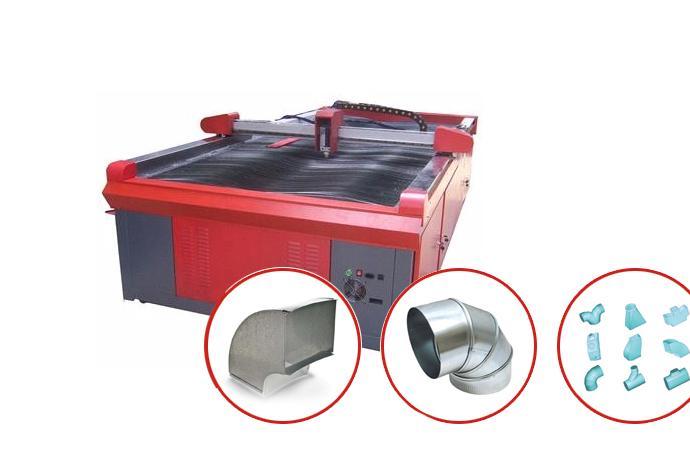

Optimal device for curved or spiral ducts
Minimizing loss rate and maximizing productivity in general duct industry
Features
- Domestic TURBO TEK
- Servo motor perfectly relevant to controller
- Special CAM software CAMDUCT(PM2000)
- LAN communication between PC and controller
- Easy installation withweight lightning
- FINE CUT NOZZLE for precise cutting
Specification
| Type | Integrated CARRIAGE / RAIL |
| Controller | TURBO TEK |
| PLASMA UNIT | Hypertherm PMX |
| Gas | AIR |
| Cutting speed | MAX 10m/min |
| Movement speed | MAX 40m/min |
| TABLE SIZE | 1 TABLE-5′x 10′ 2 TABLE-5′x 20′(up to 4TABLE) |
| Cutting thickness | 0.5mm ~ 1.2mm (up 10mm) |
