Magma-D
Model Name
MAGMA 510A/614A
Data
-
Manufacturer information
provider logo
ACCU-ONE

Plasma cutting machine and Advanced cutting equipment manufacturer, CNC waterjet, Drill, Milling and more

Problem with product info?
Update request
Manufacturer
ACCU-ONE
Brand
-
SKU
29621
Product Name
Magma-D
Model Name
MAGMA 510A/614A, 150A/275A
Size
-
Weight
-
Product Details

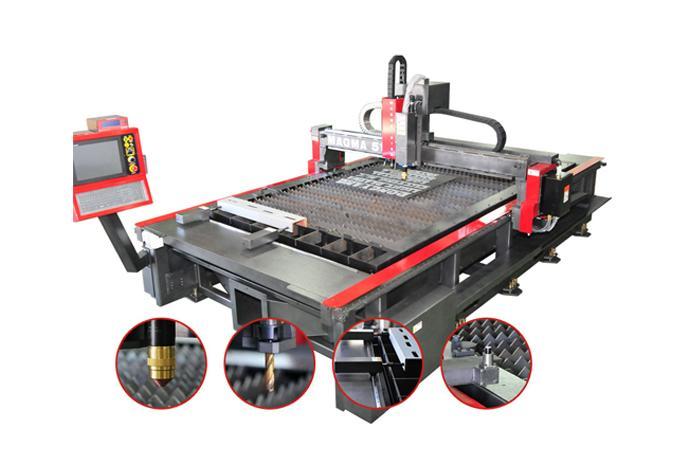

DUAL HEAD (Plasma head + Drilling head)

MAGMA-D is a combined machine with high precision plasma torch head and high precision servo motor drilling head. High precision plasma head is quite suitable for the thick iron plate which cannot be cut with laser process. It offers higher productivity with same cutting quality than laser cutting in case of iron thickness is more than 12mm.High precision servo motor head is automatically controlled by CNC controller and rotates maximum 3000rpm and it allows normal drill cycles and process as well


Features

- Multiple part process available with combination of drilling and plasma cutting
- Pressure device during drilling process for stable drilling
- Minimizing drilling load with cutting oil dispense.
- Precise centering process available with drill.
- Panel and Every section steel cutting with section steel zig
- Fast movement speed with stable structure and light weight.


Specification

MACHINE BODY
MODEL MAGMA 510A MAGMA 614A
SIZE 4550L x 2720W x 2000H 5550L x 3020W x 2000H
CUTTING SIZE 1.5m x 3.0m 1.8m x 4.0m
WEIGHT 3,100㎏ 4,200㎏
POWER 220V / 3P / 60㎐
10㎾
DRILL MAGMA SPINDLE : MAX Ø 10㎜ DRILL
OPERATING X AXIS SERVO * 2EA
Y AXIS SERVO * x 1EA
Z AXIS SERVO * 1EA
SPEED MAX 20m/min



PLASMA UNIT
MODEL 150A 275A
SIZE 762W x 1092D x 1219H 826W x 1092D x 1219H
CUTTING AMPERE 150amp 275amp
WEIGHT 542㎏ 596㎏
POWER 25.5㎾ 44㎾
CUTTINGTHICKNESS MAX 38㎜ MAX 58㎜
PIECING 25㎜ PIECING 32㎜
USING GAS Compressed Air / O2 / N2 / H17
CUTTING SPEED 1760mm/min@16t 2650mm/min@16t
ACCU-ONEPlasma cutting machine and Advanced cutting equipment manufacturer, CNC waterjet, Drill, Milling and more
“A creator of the blue ocean with steady and fast technology development.” ACCU-ONE Co., Ltd. is specialized in manufacturing leading edge below high quality CNC cutting equipment based on plasma cutting technology. -CNC plasma cutting machine -Specialized plasma cutting machine for stainless steel -CNC combined machine for drilling and plasma cutting -CNC combined machine for machining and plasma cutting -CNC water jet   Utmost Technology In order to secure high and continuous competitive power as a leading company in plasma cutting technology, we are cultivating experts under our long-term technology development plan. Highest Quality production We are trying all the best to realize customer’s satisfaction with our technician’s ceaseless quality improvement, quality guarantee, quality innovation activity. Highest Customer Service The first thing is to know customers. Our technology was achieved through ceaseless communication with customers. We offer innovative service to our customers.
