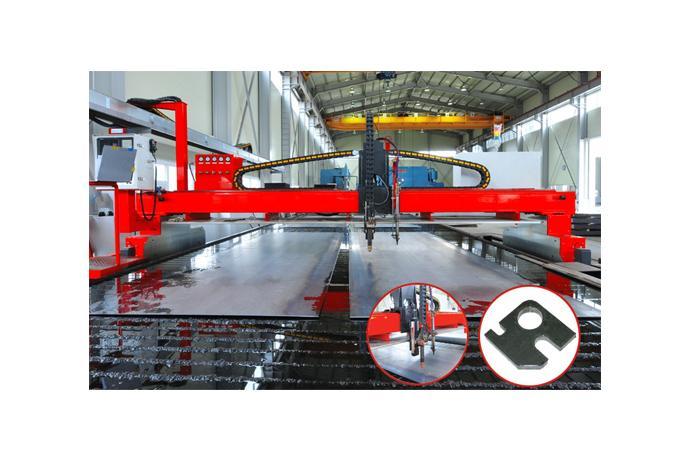

Plasma cutting machine optimized big plate steel plate.
Optimal PLASMA cutting machine for the special material processing industry and ship building industry
PLASMA cutting machine exclusively for large steel plate
Excellent cutting edge with high precision plasma generator
Less dust by sectional dust collection (dry dust collection type)
Features
- High precision PLASMA cutting edge same as laser cutting
- Special controller only for PLASMA cutting
- Easy interface and 10.4″LCD display controller
- High structural stability and low vibration with 3D structuraldesign
- Easy nesting software
- Automatic PLASMA torch height control
- PLASMA torch anti-collision system
Specification
Machinery body
| Type |
Detachable Carriage/Rail |
| Controller |
CNC 3-shaft controller |
| Torch height controller |
Independent automatic controller |
| Power supply |
220VAC / 3P / 60Hz / 20KW |
| Movement speed |
X-axis - 15m/min
Y-axis - 15m/min
|
Generator
| Type |
Kaliburn Spirit 275a / 400a |
| Gas |
air / O2 / N2 |
| Cutting thickness |
275a–regular piercing: 32mm / edge piercing: 60mm
400a–regular piercing: 50mm / edge piercing: 75mm |
| Power supply |
275a – 380VAC / 3P / 60Hz / 44kW
400a - 380VAC / 3P / 60Hz / 80kW |
