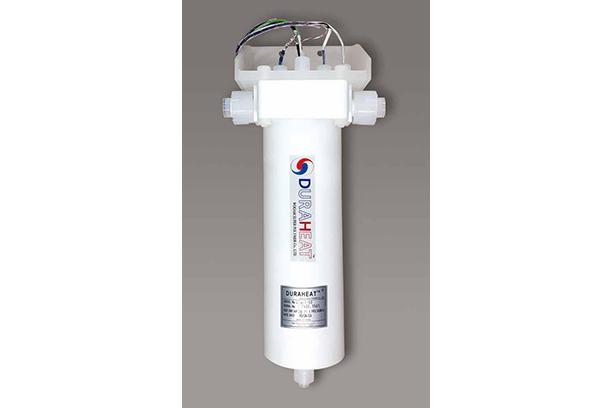

The DURAHEAT In-Line Heater provides high purity and reliable heating of chemicals for semiconductors.

Special fusion welding of heater housing eliminates O-Rings and moving parts for only PTFE / PFA contact for wetted surfaces.

Specifications_6.3KW

• One-Body PTFE Heater Housing
• PFA-jacketed heating element
• Power: 6.3 KW, 208V, 10, 60Hz, 30.3 AMPS
• Ground Wire: Pt / Ir
• Process Inlet / Outlet Fitting: 1″ Pillar Super 300
• Air Vent: 1/4″ Flare
• Drain: 1/2″ Pillar Super 300
• Housing Dimension : 233 x 153 x 523mm(H)
• Maximum Operating Pressure : 5.0Kg / C㎡ G @ 120°C
• Process Temperature Sensor: PT 100Ω
• Hi-Limit Sensor: PT 100Ω
• Thermal Fuse: SetPoint 167°C
