Product Name
|

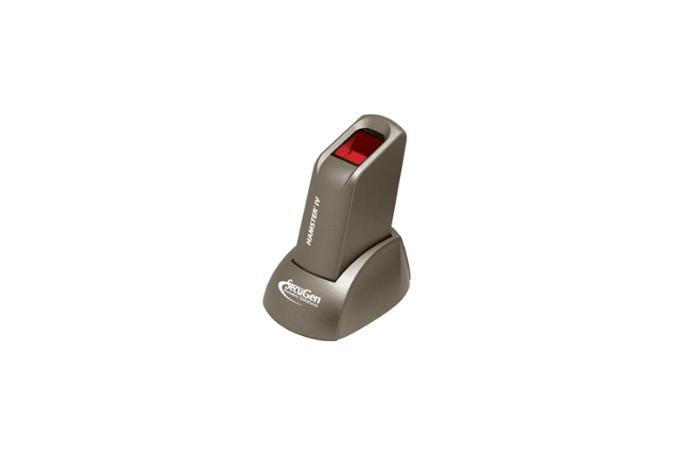

Hamster IV
|
|
Model Number
|
HSDU04P
|
|
Fingerprint Reader
|
Optic Module
|
SDU04P
|
|
Image Resolution
|
508 DPI
|
|
Image Size
|
258 x 336 pixels
|
|
Platen Size
|
16.1 mm x 18.2 mm
|
|
Sensing Area
|
12.9 mm x 16.8 mm
|
|
Image Grayscale
|
256 levels (8-bit)
|
|
Light Source
|
Red LED
|
|
LED Lifetime (typical)
|
60,000 hours
|
|
Imaging Speed (capture time)
|
0.2 ~ 0.8 seconds with Smart Capture
|
|
Electrical / Communication
|
Interface
|
USB 1.1 Full-Speed, USB 2.0 Hi-Speed
|
|
Supply Voltage
|
5 V DC (via USB)
|
|
Maximum Current
|
150mA
|
|
Physical
|
Dimensions (W x L x H)
|
27 x 40 x 73 mm (without stand)
53 x 73 x 84 mm (with stand)
|
|
Weight
|
100 g (without stand)
165 g (with stand)
|
|
Cable Length
|
1500 mm
|
|
Operating Temperature
|
-20o to +65o C
|
|
Operating Humidity
|
90% or less RH noncondensing
|
|
Other
|
Warranty
|
One year limited
|
|
Supported Standards
|
ANSI INCITS 378, BioAPI, FIPS 201,
ISO/IEC 19794-2, ISO/IEC 19794-4
|
|
Compliance
|
FCC, CE, RoHS, FBI PIV Single Finger, STQC
|
|
Supported Operating Systems
|
Windows7, Vista, XP, 2000, 9x
Windows Server 2008 R2, 2003
Android (HSDU04P), Java, Linux
|
