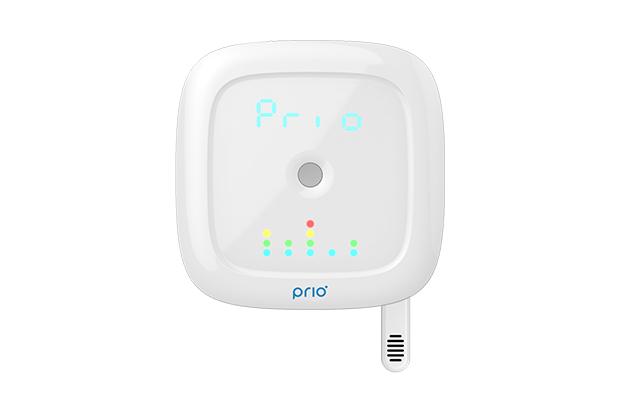

Indoor Air quality monitoring system

Prio-A100 is IoT based air condition monitoring system used 7 sensors such as Temp, Humidity, CO, CO₂, TVOC, PM2.5.

Seven sensors measure the surrounding air condition in real time to check and collect the measured data.

Temperature

Humidity

CO₂

CO

TVOC

Fine Dust (PM2.5/10)

* The measured data is saved on database server and users are able to check anywhere & anytime the environment's condition that installed the device using Web browser or PC Program.

Prio-A100 is available to use real time anywhere for measuring the air conditions as a compact size.

Check the air condition to prevent exposure to contaminated air in multi-use facilities such as in the schools, companies, hospitals where my child breathes and my parents breathe can be easily contaminated!

The PRIO A100 supports a system that allows you to check the air condition in real life with various technologies.

System Integration
1 to 1 monitoring system, monitoring system using Cloud server, 1:N type monitoring

Provide Data backup service
Data backup and stores data for 1 year

Customizing
It is possible to provide the customizing product
that use the sensor which customer need.
(Depending on the order quantity)

Products integration system
For monitoring a number of products data on the PC, It is possible to integration the system and program. Need consultation)

Check the indoor air condition at a glance through the front LED!

The LEDs on four levels indicate the condition of airborne substances.

Prio Point indicates indoor air pollution based on the integrated air environment index(CAI).

* CAI also indicates air pollution caused by human impact and sensory pollution levels according to air pollution levels in order to provide guidelines to the public to easily understand air pollution level measurements and prevent damage from air pollution.

When the sensor reading reaches the user-set level, the LED on the front flashes to show the current reading.

When carbon dioxide reaches the user-set level, the name and reading of the sensor are displayed on the front LED.

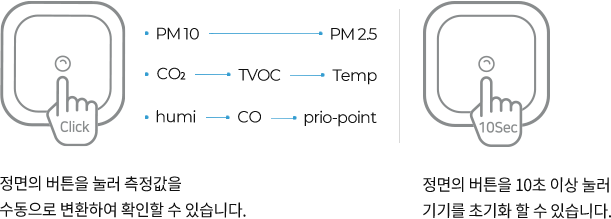

Use the button to conveniently check the measured value!

When Temperature, Humidity, CO₂, CO, Fine Dust, TVOC reaches the user-set level, the name and reading of the sensor are displayed on the front LED.

The PRIO A100 supports a system that allows you to check the air condition in real life with various technologies.

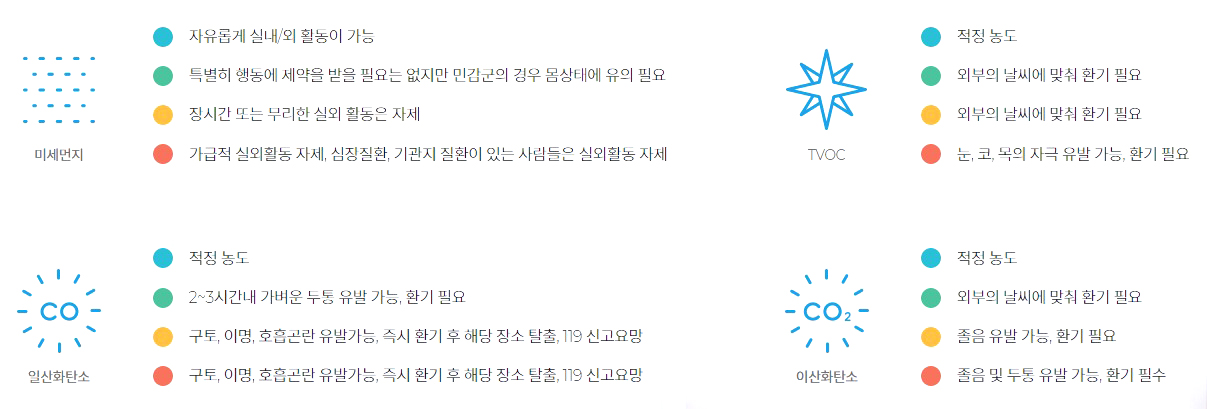

You can lead a healthier life by taking the following actions according to the LEDs displayed on the front of the PRIO A100.

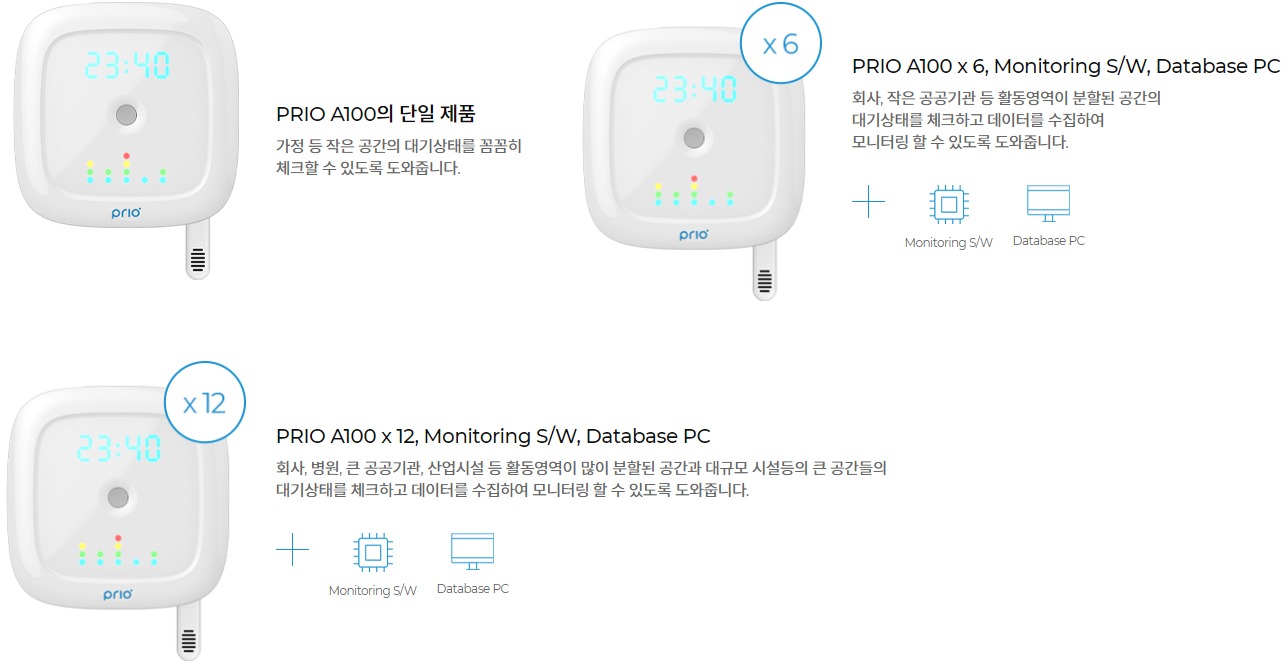

PRIO A100 has three packages to suit the installation environment.

item of organizing	power	size	weight	measurement item
12 A100s (lte modem included) DATABASE PC Monitoring SW	Constant power (usb micro 5pin)	A100 : 110x110x43(mm) Varies by product specification	A100 : 180g Varies by product specification	Temperature, Humidity, CO₂, TVOC, Fine Dust(PM2.5, 10), CO
6 A100s (lte modem included) DATABASE PC Monitoring SW	Constant power (usb micro 5pin)	A100 : 110x110x43(mm) Varies by product specification	A100 : 180g Varies by product specification
PRIO A100’s single product	Constant power (usb micro 5pin)	A100 : 110x110x43(mm)	A100 : 180g

* Monthly charges may apply when using an LTE modem.

Communication	WIFI Network IEEE 802.11, b/g/n
Sensors	Temperature	-10℃ ~ +80℃	±0.2℃
	Humidity	10 ~ 99%	±2%RH
	CO₂	0 ~ 5,000ppm	±15%
	TVOC	0 ~ 9,999ppb	±20%
	PM 2.5, PM 10	0 ~ 500µg/m³	±10% @ 100 ~ 500µg/m³
	PM 2.5, PM 10	0 ~ 500µg/m³	±10µg/m³ @ 0 ~ 100µg/m³
	CO	0 ~ 1,000ppm	±10%
PC Software	Prio-Point	0 ~ 500
	Server data	Graph display
	Event data	Alarm display
	Data display	4 Steps display
Function	Battery	5 volt, Max 500mAh USB power, No battery
	Place	Indoor only
	Dimension	110 x 110 x 43 (mm)
	Weight	180g, Main device only
	Installation	Tripod, wall mount
