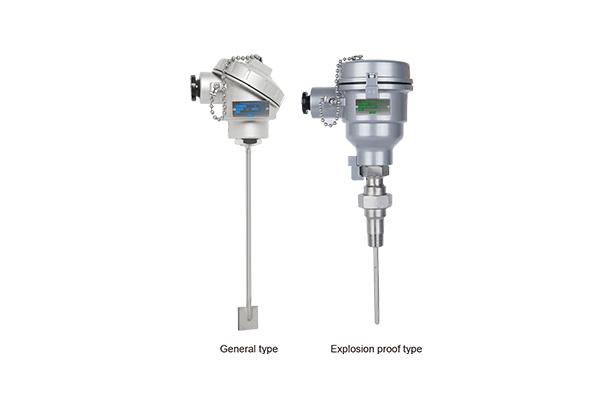

product Image
Tube Skin Thermocouple And Resistance Temperature Detector
모델명
R601
시리즈
온도센서•히터•트랜스미터
자료
Manualt-WISE-TG Sensor•Heater•Transmitter-Tube Skin Thermocouple And Resistance Temperature Detector
구매정보
provider logo
(주)와이즈

압력계 온도센서, 유량계, 레벨게이지 및 트랜스미터 제조

연락처
02-300-2300
이메일
-
상품정보에 문제가 있나요?
정보수정 / 삭제요청
코머신은 제품 판매의 당사자가 아닙니다.
제조사
(주)와이즈[바로가기]
브랜드
-
SKU
141788
제품명
Tube Skin Thermocouple And Resistance Temperature Detector
모델명
R601, R602, R611, R612
사이즈
-
중량
-
제품 상세 정보

Service intended

This tube skin temperature sensor is designed to measure the surface temperature of a pipe or a tube used in a boiler, a furnace, a heat exchanger, and a reactor. It is constructed to resist against high temperature and a corrosive agents by tightly attaching the sensor to the measuring area by welding a knife edge pad or a plate weld pad. Furthermore, to protect the pad and the sheath from the heat expansion, it employs a coil shaped design.



Standard features

Element Thermocouple : K, E, J, T, N
R.T.D. : Pt 100Ω at 0 ℃
Tolerances on temperature reading

Class A : ± (0.15 + 0.002 l t l)
Class B : ± (0.3 + 0.005 l t l)

Temperature range Film type element
  • Class A (-30~300 ℃)
  • Class B (-50~500 ℃)

Ceramic type element

  • Class A (-100~450 ℃)
  • Class B (-196~600 ℃)
Sheath outer diameter ■ Thermocouple
1.0, 1.6, 2.3, 3.2, 4.8, 6.4, 8.0, 9.5 and 12.7 mm
* Double element is not available for 1.0 and 1.6 mm sheath outer diameter
■ R.T.D.
3.2, 4.8, 6.4 and 8.0 mm
Head material ALDC (Standard)
304SS (Not available compact type)
316SS (Not available compact type)

© WISE Control Inc. All rights reserved. ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
