U100-S, ABRASIVE BLASTER

BLAST AWAY

Dirt, Rust, Paint and Unwanted Deposits to prepare surface for repair and painting.

The abrasive from the high flow, 10 Gallon, 100 pound U100-S penetrates the deepest pitted area to remove dirt, rust, paint and unwanted deposits. Readies the surface for priming and filler. Ideal for refinishing vehicles, boats, monuments, brick buildings and industrial equipment.

Models

Features

• High flow, 4 ply, 1/2 inch heavy duty hose.
• Abrasive gun with Safety Shut Off Valve, a unique Uni-ram design, to terminate air and abrasive flow.
• Tank size is 8.5 US gallons.

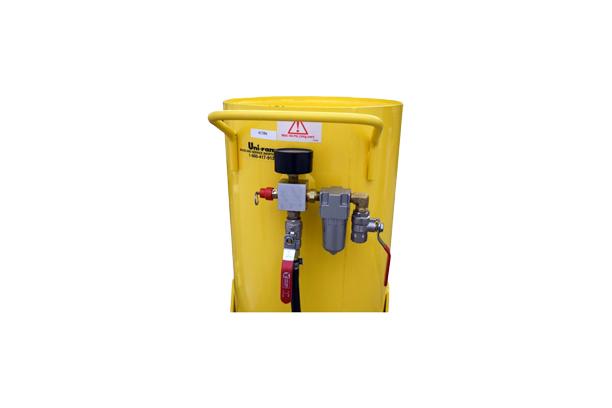

• Pressure Relief Valve, Pressure Gage and cutoff valves for supply air, abrasive and air passage to abrasive.

Operation

Filling the tank with Abrasive is quick and easy:

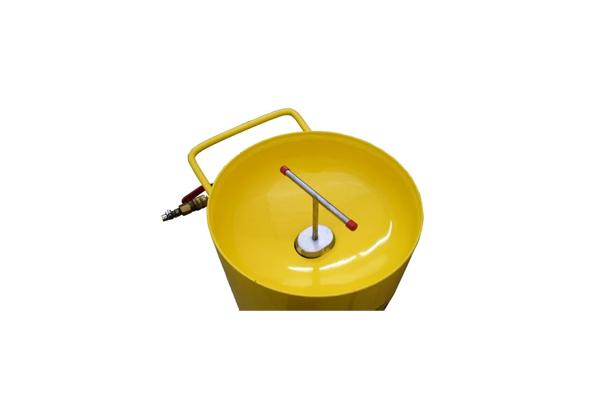

• Pour abrasive with ease into the Built-In Funnel at top of the tank.
• Return the maintenance-free Removable Filler Plug and apply air pressure, which forces the plug upward and seals the tank.

Blasting Abrasive

• Open Air Inlet Shut-Off Valve all the way on side of tank.
• Adjust Abrasive Control Valve on bottom of tank. This regulates the mixture of air to abrasive.
• Squeeze Safety Shut-Off Valve to activate flow of abrasive.

Abrasives include: glass beads, metal shot, aluminum oxide and nut shells.

NOTE: Uni-ram recommends against the use of coal and other slag products that may contain and expose the user to intrinsically hazardous dusts, such as beryllium.

Appropriate protective equipment should be worn at all times during blasting operations.

The Safety Shut-Off is an innovative Uni-ram design. Releasing lever terminates abrasive flow for operator safety.

Specifications

• 5-10 HP compressor provides 7-20 CFM at 80 PSI
• 100 lb abrasive capacity.
• large, 4 ply, 1/2 inch hose diameter for high flow and long life.

Shipping Dimensions: 17″w x 17″d x 34″h (43cmW x 43cmD x 86cmH) Shipping Weight: 55 lb (25kg)
