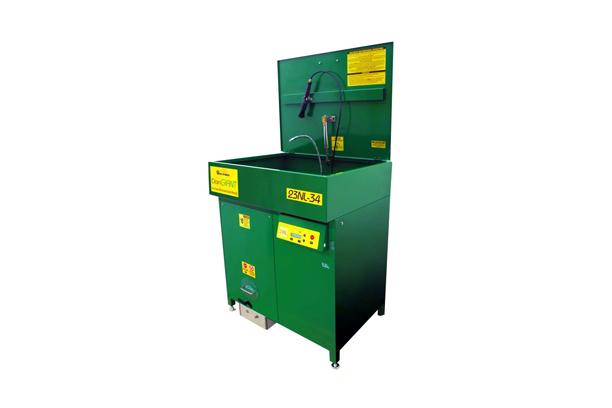

23NL-34

Clean parts with the Flow-Thru Brush and Flexible Spigot. With the press of a button, clean, recycled solvent automatically replaces dirty solvent and the dirty solvent is recycled by the Built-In Solvent Recycler.

Parts clean faster with clean solvent and the clean solvent is available every day.

Recycling dirty solvents lowers costs for the facility because solvent purchases and used solvents transported off-site are reduced by 90%. Correspondingly, the facility’s carbon footprint decreases with a 23NL-34.

MODELS        SINK SIZE (“)

23NL-34         34 W x 28 D x 8 H

23NL-42         42 W x 28 D x 8 H



For a comparison to a sink on a drum type part washer click on the link below.

https://uniram.com/wp-content/uploads/2021/04/WASTE-RECOVERY-SERVICES.pdf

RECYCLER OPERATION

With a press of a button, dirty wash solvent drains from the reservoir, and 5 gallons (19 Litres) of clean solvent flows into the reservoir and is available to the operator for cleaning parts. The dirty solvent is recycled in about 4 hours and the waste is discharged into the waste container for later disposal.





FEATURES

Cleaning tools; Flow through brush and flexible spigot, each with flow control

• Sink Lid with Lid Stay and fusible link
• Clean parts while the dirty solvent recycles; parts cleaning is unavailable for only 4 minutes while the system replaces dirty solvent with clean solvent.
• Designed for ease of service; clean tank and boiler tank can be removed without removing wash sink.
• Moveable by pallet truck or forklift truck
• Stainless Steel 30 gallon clean tank for long life

Build-In Solvent Recycler

• Continuous monitoring of workflow; many safety programs, self diagnostics
• LCD with 32-character messages
• Debris, at the end of recycling, flows through the drain valve to the removable debris drawer for disposal
• Vacuum Pump with a metal impeller for long service life





CERTIFICATION

Certified by ETL to safety standard UL2208 and CSA 22.2 no. 88

SPECIFICATIONS

• Washing Tools: A Flow-through Brush and a Flexible Spigot, each with flow control valve
• Solvent Pumps: Wash Pump and Transfer Pump, 120V AC, 70W, each
• Clean Solvent Tank: Stainless Steel 304, 30 Gallon (113.5 Litre) capacity
• Built-In Solvent Recycler
• Electric Supply: 120V AC, Single Phase, 60Hz, 1.5KW, 15A (Use 20A dedicated circuit)
• Vacuum Pump: Uni-ram Vacuum Pump with a Metal Impeller, 120V, 4.6A, 1/3HP, 3,500 rpm
• Heaters: 2 Cartridge Immersion Heater, 120V, 475W each, Stainless Steel heath
• Control System: A computer board with 32-character LCD, Buzzer, 2 LEDs, and 6 Keys
• Control Sensors: Two thermo-couples, two thermostats, Vacuum Sensor, Level Sensor



MODEL            SINK SIZE (“)         DIMENSIONS (“)       WEIGHT (lb)

23NL-34     34 W x 28 D x 8 H    34 W x 28 D x 40 H     272
23NL-42     42 W x 28 D x 8 H    42 W x 28 D x 40 H     302

For use with “non-flammable” solvents ONLY which are defined as solvents with a Flash Point temperature above 100°F (37.8°C) and a Self-ignition temperature above 392°F (200°C)
