FOR A CLEANER AND HEALTHIER SHOP ENVIRONMENT.



Additional Models

• UR300QVAC-PR1: UR300QVAC plus sander (part number UPSANDER).
• URS300QVACH: A UR300QVAC with a 220-240V input instead of 120V.





Benefits

• Technicians breathe freely, reduces need for breathing apparatus.
• Constant vacuum airflow keeps the working surface cooler.
  Recently painted parts are dust free.
• Reduces shop dust hazard.
  Reduces clean up time.
• Reduces abrasive consumption.
• Complements or eliminates the need for central vacuuming system.
• Easy to move and maneuver due to casters and small size.

ASSISTS SHOPS IN REACHING AIR QUALITY STANDARDS.





Features

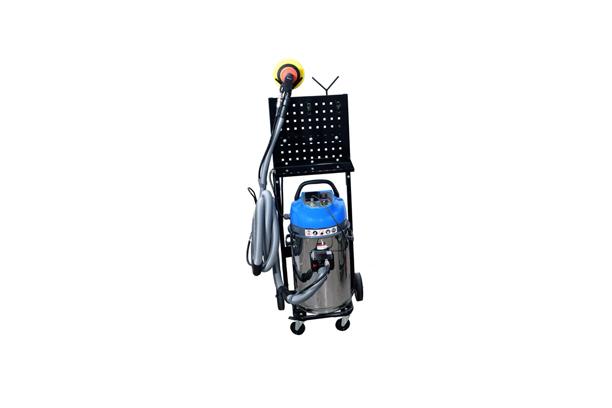

• One-person system with 16 ft hose and 20 ft power cord.
• Settings on Control Panel:
• Auto – Sander automatically turns vacuum on and off.
• Manual – User manually turns vacuum on and off.
• Outlet for electric sander.
• Voltage: 120V, 50/60 Hz
• Motor: 1 motor at 800W. Maximum decibel rating is 60 db. The motor is a 2-stage, bypass motor with a diecast housing and an internal fan for cooling.
• Cartridge Filter prevents dust from reaching vacuum motor.
• Waste collects in a disposable bag for later disposal.
• Locking casters to keep vacuum stationary.
• Coated steel pegboard and shelves to store sanders and disc sandpaper.
• Stainless steel drum construction. Drum capacity is 24 L.
• Replaceable brushes, 2 extra brushes provided.
• Vacuum Pressure: 2200 mm H2O
• CE Safety Approval, 1-year warranty.





Operation

ON control at the sander automatically turns the powerful vacuum on to collect the dust and debris from the sanding surface and transfer it to a fitted bag inside the canister for later disposal. The sanders store neatly on elevated metal “Y” posts for easy access. Supplied hangers can be placed on the steel peg board to neatly store disc sandpaper and backing pads.





Specifications

• Vacuum Pressure: 2200 mm H2O
• Motor: input 120V at 800W, 2-stage, bypass type





Optional Parts

• Cartridge Filter, High Density, HEPA like 28-172
• 24 ft. vacuum and air hose 28-724
• Vacuum hose and floor brush kit, with dust brush and crevice tool 28-710
• Detail kit with dedicated vacuum hose and suction tools. 28-710





Sanders

• UPSANDER 6” Pad, 5 mm offset, 1.7 lb, 90 PSI, 8.4 cfm
• UPFSANDER 6” Pad, Fine, 2.5 mm offset, 1.7 lb, 90 PSI, 8.4 cfm

Note: Sanders are sold separately (not included with VACs).
