Application Field

Capacity : 200gf / 500gf / 2kgf / 5kgf / 20kgf / 50kgf / 100kgf / 200kgf

Standard

It is based on each standard.

Product Description

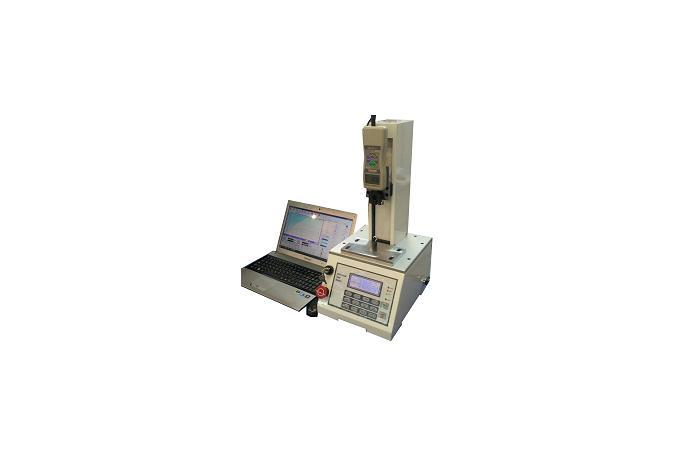

◇ This is an equipment to measure the strength of products such as plastics, rubber, film, polyurethane, paper. Low-cost was achieved. This is a stand of digital push pull-gauge, and it is used in the product of less than 100kg.

◇ Stand (Japanese / Korean)

◇ Push Pull Gauge: Japanese

◇ Road Cell Range: 200gf / 500gf / 2kgf / 5kgf / 20kgf / 50kgf / 100kgf / 200kgf

◇ Dimensions: Approx 300×450×750mm

◇ Type: AUTO

◇ Capacity: Max. 100Kg/f

◇ Stroke: 400mm (No Grip)

◇ Speed: 1-300mm/min

◇ Display: Load Zero, Stroke Zero, Return, Up/Down, Peak, Test Mode Free Mode

◇ Power: 220V/60Hz

◇ Weight: 30kg
