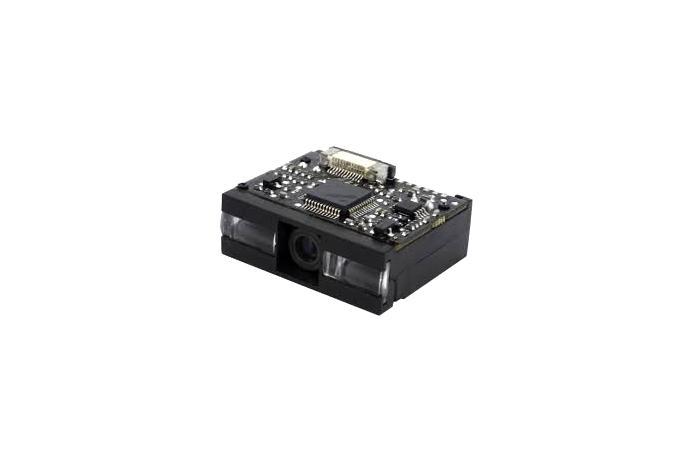

1D Long Range CCD Module

PERFORMANCE
Readable angle : Readable angle : Forward: 10°, Backward: 30°
Scan rate : 300 Scans per Second
Resolution : 3mil (0.075mm)
Photo Sensor : 2500 Pixel Linear CCD
Illumination : 660nm Visible Red LEDS
Field Width : 170mm
Depth of field : 40~450mm
Symbologies : GS1 DATABAR, UPC/EAN/JAN, Code39, Interleaved 2 of 5
                        Standard 2 of 5, Matrix 2 of 5,
                        Industrial 2 of 5, Codabar, Code128, MSI, Plessey, Code39,
                        Code 3 of 5 (Korean Postage)

Interface : USB-HID, USB-Serial

MECHANICAL
Dimensions : 28.4 × 23.8 × 11.5mm
Weight : 6g
Cable : 12P
Body Material : ABS Plastic

ELECTRICAL
Power Supply : 5VDC ± 5%
Current Active : 100mA MAX

ENVIRONMENTAL
Temperature : Operating : 0 ~ 50°C, Storage : -10 ~ 60°C
Humidity : Operating : 10% ~ 80%, Storage : 10% ~ 95%
Mechanical Shock : Functional after 1.5m (5ft) drops
ESD Protection : Functional after 15kV discharge

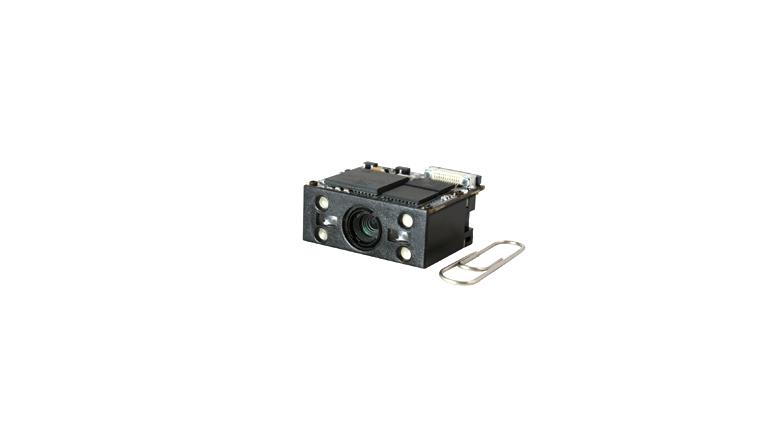

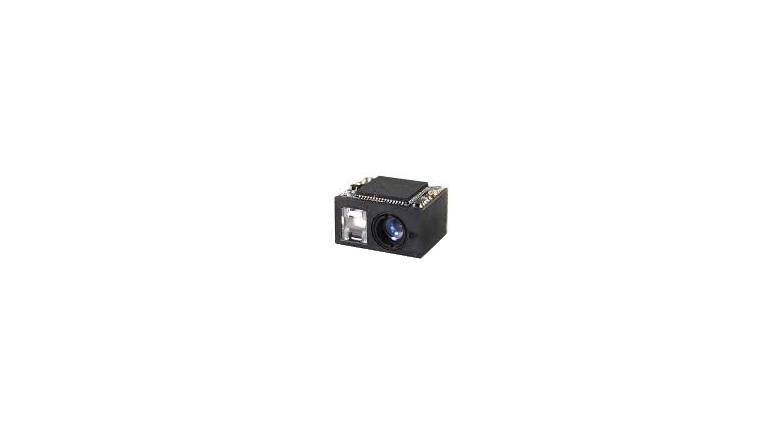

2D Module

PERFORMANCE
Readable angle : Readable angle : Forward: 10°, Backward: 30°
Scan rate : 30 Scans per Second
Resolution : 5mil (1.25mm)
Photo Sensor : 752 * 480 CMOS
Illumination : 625nm Visible Red LEDS
Field Width : 100mm
Depth of field : 30~300mm
Symbologies : 1D: GS1 DATABAR, UPC/EAN/JAN, Code39,
                              Interleaved 2 of 5, Standard 2 of 5, Matrix 2 of 5,
                              Industrial 2 of 5, Codabar, Code128, MSI, Plessey, Code39,
                              Code 3 of 5 (Korean Postage)
                         2D : All Barcode

Interface : Uart RS-232

MECHANICAL
Dimensions : 28 * 13.5 * 23.5mm
Weight : 18g
Cable : 12P
Body Material : ABS Plastic

ELECTRICAL
Power Supply : 5VDC ± 5%
Current Active : 350mA MAX

ENVIRONMENTAL
Temperature : Operating : 0 ~ 50°C, Storage : -10 ~ 60°C
Humidity : Operating : 10% ~ 80%, Storage : 10% ~ 95%
Mechanical Shock : Functional after 1.5m (5ft) drops
ESD Protection : Functional after 15kV discharge
