제품 상세 설명
Description

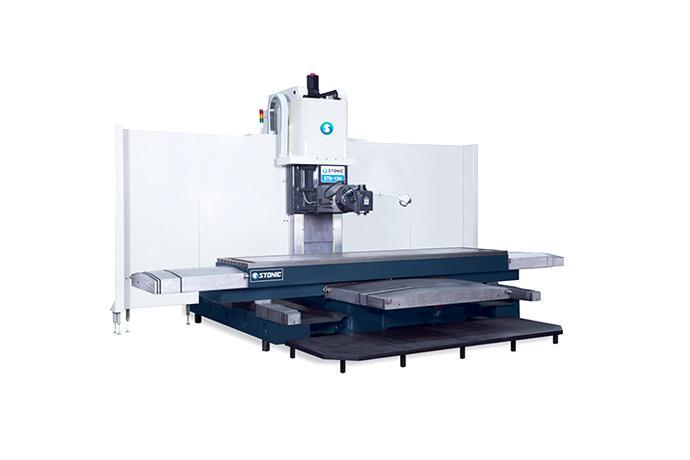

Steady & Best Selling Milling Machine
This is our Best and Steady Selling model.
The length from Column to Center of Spindle is Max 1,500 mm.
Spindle RPM is MAX 4,000 RPM.
Please watch out Outstanding Specification compared to Competitor’s.
Article
UNIT
STM-13U
STM-12U
STM-10U
STM-8U
Table
Working Surface (L×W)
mm
4,200×1,100
3,800×905
3,800×805
T-Slots (Width×Number)
8×22
8×20
7×20
Max Travel (Longitudinal)
4,000 (O.T)
3,400 (O.T)
3,200 (O.T)
3,100 (O.T)
Max Travel (Cross)
1,300 (O.T)
1,250 (O.T)
1,050 (O.T)
850 (O.T)
Max Travel (Vertical)
-
1,200 (O.T)
1,000 (O.T)
Number of Feeds
step
no step
Feeds/min
(Longitudinal, Cross)
mm/min
12~1,800
Feeds/min (Vertical)
6~900
Rapid Feed/min
3,200
Rapid Feed/min (Vertical)
1,600
Spindle
Spindle Nose
B.T
#50
Number of Speeds
12
Speeds
r.p.m
45~1,350
Spindle Center to Column
1350
1250
1100
900
Motor
Spindle Drive Motor
kw
15 (4P)
Feed Drive Motor
AC Servo 2.9/3.5
Coolant Pump Motor
w
180 (2P)
X, Y, Z SCREW
4,000
