| Model No. | DI - 1500 (For 1500t/h CSU) DI - 2000 (For 2000t/h CSU) DI - 3000 (For 3000t/h CSU) |
| DI - 3000 System Specifications | |
| function | To allow the excavator by cargo ship to the end part of the BE bucket and Catenary tensioning and formation of Bucket Chain |
| Type | Telescopic Type |
| Chain Take-up Device | (Automatic adjustment of the chain tension due to the hydraulic device) Type : Hydraulic Cylinder Cyilinder Stroke : 1800mm Spped : Max. 4m/min |
| Size (L x W x H) | 6950 x 3574 x 4025 (mm) |

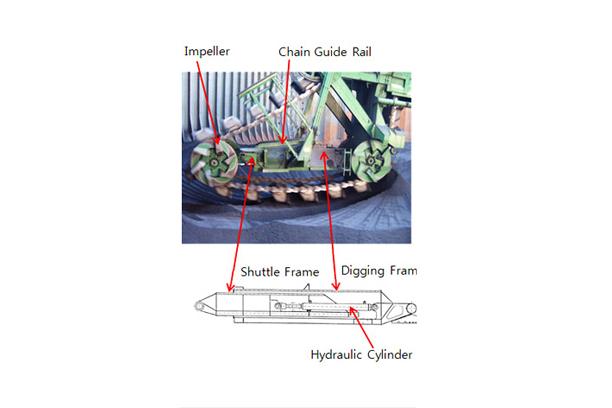

| Components | Digging Frame, Shuttle frame, Impeller, Hyd. Cylinder, Shaft, Harrow Frame, Guide Roller, Chain Guide Rail, Tape Switch |
| Main Material | SM490A |
