제품 상세 정보
1/3” 520K Sony Super HAD Ⅱ Color CCD
33 pcs of White LEDs (working by PIR sensor)
2.8~12mm DC auto iris lens
Smart-NR (3D-NR+Motion detection)
Sense up (up to x 256)
PIR sensor (detecting 5m/17ft)
D-WDR (Digital Wide Dynamic Range)
F-DNR (Fog Digital Noise Reduction)
Motion detection (Detection Area : 4 Area)
Keep color image even at night time
External interface: Trigger Out/ Alarm In

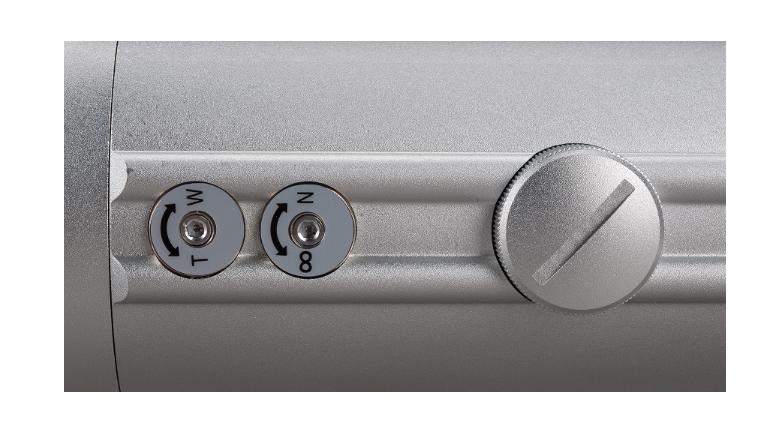

Lens adjustable externally (Gear type)
Concealed bracket
Built-in OSD (on Screen Display)
Weather proof (IP-66)
| MODEL | SJC44B67NAVW | ||
| Image Sensor | 1/3” 520K Sony Super HAD Ⅱ color CCD | ||
| TV System | NTSC | PAL | |
| No. of pixels | H | 976 | 976 |
| V | 582 | 494 | |
| Scanning Frequency | H | 15.734kHz | 15.625kHz |
| V | 59.94Hz | 50Hz | |
| Electronic Shutter | 1/60~1/100,000 | 1/50~1/100,000 | |
| Resolution | 700 TV lines | ||
| Power Source | 12VDC ±10% | ||
| Scanning System | 2:1 Interlace | ||
| Sync System | Internal | ||
| Video Output | VBS 1.0V p-p 75Ω | ||
| S/N Ratio | More than 52dB | ||
| Minimum illumination | 0.000 Lux (LED condition) | ||
| White LED | 33 pcs of white LEDs | ||
| Power Consumption | Max 1W at normal / Max 3W at LED on | ||
| Operating Temperature | -10℃ to 50℃ | ||
| Operating Humidity | 30% to 90% | ||
| Lens | 2.8~12mm DC auto iris lens | ||
| Dimension /mm | Φ76 X 122 (L) | ||
| Weight /g | 1000 | ||
