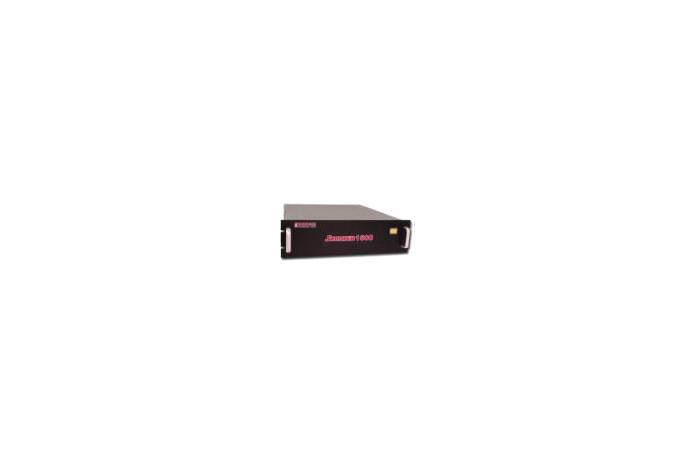

ㆍRackmount type 1600 series Echosounder for survey vessels
ㆍSuccessful 320 Series의 후속 모델로 새로운 디자인
ㆍ12Mbps USB 2.0 지원


ㆍ4 channels
ㆍ12Mbps USB 2.0 지원
ㆍMain Range: 10 ~ 5,000m
ㆍPhased Range: Multiple 50% overlapped phases of each range(20% option), manual or automatic selection
ㆍFrequencies: 24 ~ 210 kHz user selectable
ㆍPower: 4 user-selectable power levels up to 1kW per channel
ㆍDepth Resolution: 1cm(0-99.99m), 1dm(100-999.9m), 1m(<1000m)
ㆍSound Velocity: 1300 ~ 1700m/s, resolution 1m/s
ㆍDraft: 0 ~ 100m, resolution 1cm
ㆍGain Controls: AGC, TVG and manual receive gain for each frequency
ㆍOutput Data: XTF, KEL format, ASCII Digital Depth Strings


ㆍRackmount type 1600 series Echosounder for survey vessels (수심측정)
