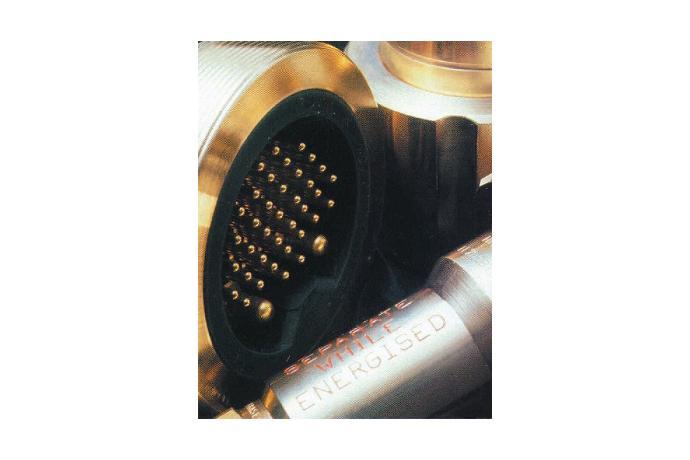

EExd and EExde Explosion Proof Connectors (Underwater Mateable)

HXD (Hydrobond EExd / EExde)


Features

 - Underwater Mateable
 - Robust Design
 - Neoprene moulded connector insert as standard with other materials available on request (subject to approval)
 - Depth rated to 2,440 MSW (subject to cable gland and moulding option)
 - Fully open face pressure sealed
 - Metal Shell Construction
 - Available in 5 shell sizes
 - Bulkhead Mount and Panel Mount Designs available as standard
 - Panel Mount and Bulkhead mount receptacles come with either solder buckets in the HXD3 or 0.75 metre conductor tails in the HXDe3/4 versions. Longer conductor tails available on request
 - Mounting O – Ring face seals
 - Pin Densities from 1 to 70 ways
 - Voltage ratings up to 3,300 Volts RMS
 - Current ratings up to 750 Amps
 - Available in Aluminium Silicon Bronze, Brass and 316 Stainless Steel
 - Acetal dust caps supplied with all connectors (lanyards available on request)
 - Optional EXD Rated protective caps available on request
 - Optional Earth Bonding
 - Termination options include non armoured cables diameters from 3.5mm to 32.2mm and armoured cables from 8.4mm to 39.9mm using standard CMP glands
 - Optional approved Polyurethane overmoulding for full IP68 water submersion


Application field

 - Make and Break connections topside (zone 1) then deploy subsea (2,440 MSW) with same connector
 - Easy to use
 - Fast Delivery lead times
 - Wide variety of pin configurations allows cost effective system design
 - Wide variety of metal options allows for best corrosion resistant design
