Feature of Product
• 35W, 60W, 100W, 150W, & 250W models; each with a large power reserve
•SPT5A, SP58A, SPT15A, SP158A, SPT30A, SP308A
•Maximum speaker power capacities of 7.5W, 15W, & 30W
•Rotary switch-selected power taps on transformer models
•Consistent voltage (70V/25V) and 8-ohm versions
•Tilt & swivel base for easy aiming
•All metal construction with enamel finish
•Weatherproof design
Models SPT5A and SP58A
•High intelligibility and efficiency
•Passive loudspeaker
•Ideal for both one-way and two-way applications
•7.5 watts
•25/70V or 8-ohm operation
•Variable-tap impedance selector on SPT5A
•All-purpose mounting bracket for precise positioning, both vertically and horizontally
•Weatherproof, all-metal construction
•Textured mocha enamel finish
Models SPT15A and SP158A
•High intelligibility and efficiency; ideal for both one-way and talk back applications
•Weatherproof, all-metal construction
•15 watts; 25/70 volt (SPT15A) or 8-ohm (SP158A) operation
•Tap settings for 70V: 15, 7.5, 3.8, 1.8, 0.9 watts; for 25V: 15, 7.5, 1.8, 0.94, 0.46 watts
•Rotary tap impedance selector on SPT15A
•Tilt and swivel base for easy positioning
•Screw terminals make installation fast and easy
•All-purpose mounting bracket
•Self-aligning, field replaceable diaphragm
•Mocha enamel finish
•Limited lifetime warranty
•Mountable to I-beam flange using Bogen’s BC1 Beam Clamp (sold separately)
•Mountable to electrical box using Bogen’s HSES10 mounting strap (sold separately)
•Terminal Cover (TCSPT1) allows connection of conduit fittings to horn speakers (sold separately)
Models SPT30A and SP308A
•High intelligibility and efficiency; ideal for both one-way and talk back applications
•Weatherproof, all-metal construction
•30 watts; 25/70 volt or 8-ohm operation
•Tap settings for 70V: 30, 15, 7.5, 3.7, 1.8 watts; for 25V: 15, 7.5, 3.7, 1.8 watts
•Rotary tap impedance selector on SPT30A
•Tilt and swivel base for easy positioning
•Screw terminals make installation fast and easy
•All-purpose mounting bracket
•Self-aligning, field replaceable diaphragm
•Textured mocha enamel finish
•Limited lifetime warranty
•Mountable to I-beam flange using Bogen’s BC1 Beam Clamp (sold separately)
•Mountable to electrical box using Bogen’s HSES10 mounting strap (sold separately)
•Terminal Cover (TCSPT1) allows connection of conduit fittings to horn speakers (sold separately)
Feature of Product

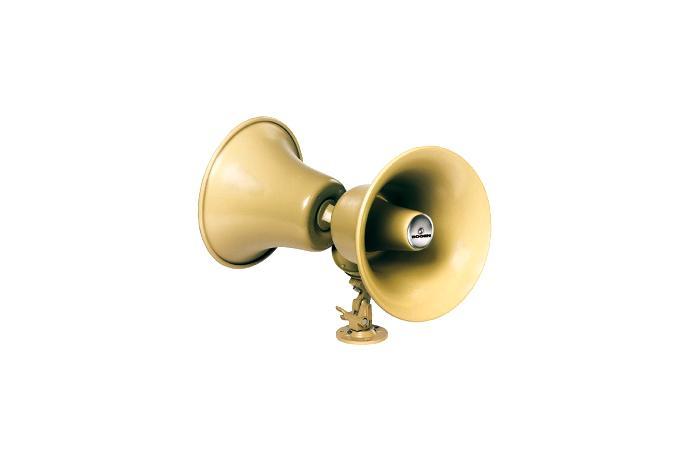

•Twin re-entrant horns for bi-directional projection
•Maximum speaker power capacity of 30W
•Variable tap impedance selector switch
•Tilt & swivel base for easy aiming
•All metal construction with enamel finish
•Weatherproof design
•Twin reentrant horns for bi-directional projection
•High intelligibility and efficiency
•Ideal for both one-way and talkback paging applications
•Weatherproof
•Sturdy, all-metal construction
•30 watts max. at 70V operation or 15 watts max at 25V operation
•Tap settings for 70V: 30, 15, 7.5, 3.7, 1.8 watts; for 25V: 15, 7.5, 3.7, 1.8 watts
•Rotary tap impedance selector switch
•Screw terminals make installation fast and easy
•For indoor and outdoor use
•Uniquely designed all-purpose mounting bracket for simple installation
•Self-aligning, field-replaceable diaphragm for easy maintenance
•Limited lifetime warranty
•Mountable to I-beam flange using Bogen’s BC1 Beam Clamp (sold separately)
•Mountable to electrical box using Bogen’s HSES10 mounting strap (sold separately)
•Terminal Cover (TCSPT1) allows connection of conduit fittings to horn speakers (sold separately)
Feature of Product
•70 x 95 degree dispersion with rotatable horn flare
•30 watts max. @ 70V or 15 watts max. @ 25V
•Weatherproof, polycarbonate & aluminum construction
•All-purpose mounting bracket provides precise positioning in the vertical and horizontal planes with a single adjustment
•7 position weather-sealed switch matches either 70V or 25V constant-voltage line
•30 Watts max. @ 70 volts or 15 Watts max. @ 25 volts
•Weatherproof polycarbonate and aluminum construction
•Driver enclosed in weatherproof housing
•70° × 95° dispersion with rotatable horn flare
•All-purpose mounting bracket provides precise positioning in the vertical and horizontal planes with a single adjustment
•Seven-position, weather-sealed tap selector switch
•Rotary switch-selected power taps
•Tap settings for 70V: 30, 15, 7.5, 3.7, 1.8 watts; for 25V: 15, 7.5, 3.7, 1.8, 0.9, 0.5, 0.25 watts
•Self-aligning, field-replaceable diaphragm
•High-intelligibility and efficiency
•Screw terminals for easy audio line connection
•Plastic cover protects connectors and tap selector switch, also provides strain relief for the audio line
•Textured mocha enamel finish on aluminum, matching polycarbonate horn flare
•Limited lifetime warranty
•Mountable to I-beam flange using Bogen’s BC1 Beam Clamp (sold separately)
•Mountable to electrical box using Bogen’s HSES10 mounting strap (sold separately)
•Terminal Cover (TCSPT1) allows connection of conduit fittings to horn speakers (sold separately)
Feature of Product
•HS7EZ, HS15EZ, HS30EZ
•Maximum speaker power capacities of 7.5W, 15W, & 30W
•Single-tap design
•Stepped attenuator volume control
•For 70V systems
•Tilt & swivel base for easy aiming
•All metal construction with enamel finish
•Weatherproof design
•7.5-, 15-, and 30-watt models
•Single-tap design
•Stepped attenuator volume control
•12″ lead wire for electrical connections (HS7EZ)
•Screw terminal connections for fast installation (HS15EZ and HS30EZ models)
•Designed for 70V amplifier outputs
•Tilt and swivel mounting base for flexibility in coverage
•High intelligibility and efficiency
•Weatherproof, all-metal construction
•Limited lifetime warranty
•Mountable to I-beam flange using Bogen’s BC1 Beam Clamp (sold separately)
•HS15EZ and HS30EZ models mountable to electrical box using Bogen’s HSES10 mounting strap (sold seperately)
•Terminal Cover (TCSPT1) allows connection of conduit fittings to horn speakers (sold separately)
