SH services to the benefit for our customers are extended to Piping Modules for the same satisfaction as proven for piping packages.

The newest service in our portfolio brings you the advantage of piping Modules including the basic piping and support package with our strengths based on the well trained and experienced engineers of project management in power plants.

The module design considers installation requirements, even in confined areas, considerably reducing erection time on site compared with the usual trade-wise erection sequence while modular piping solution offers several benefits, including flexibility in plant siting, less safety concern during construction, and ease of equipment modification lowering costs by shifting high cost field labor hours to a fabrication yard and benefit from higher productivity.

Features
- Efficiencies in cost and material
- Robust designs with scalability
- Reduces field labour and risk associated with time
- Faster to install and commission
- Lower welding cost
- Coatings, heat tracing insulation and instrumentation are performed in the shop environment
- Safer to erect

Applicable Areas

- Main Pipe Rack
- Cooling Water
- Condensate Recirculation Pump
- Water System
- Steam Turbine Drain
- Feed Water Pump
- Auxiliary System
- Clean Drain Skid

Production Flow

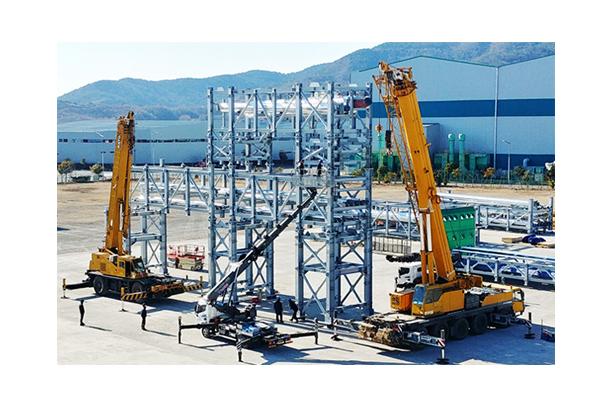

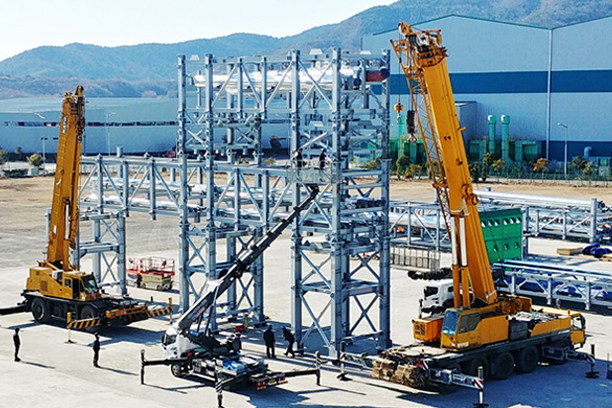

Signature Project
UTE GNA I THERMOELECTRIC POWER PROJECT (1,238MW X 1 UNIT)

End User : UTE GNA I Gás Natural AÇu S.A.
Customer : SIEMENS
Location : North of Rio de Janeiro State, Brazil
Working Period : 2018. 03.~2019. 04.
Volume Performed : 2,293 tons
77 Transportation Units with 12 modules.
